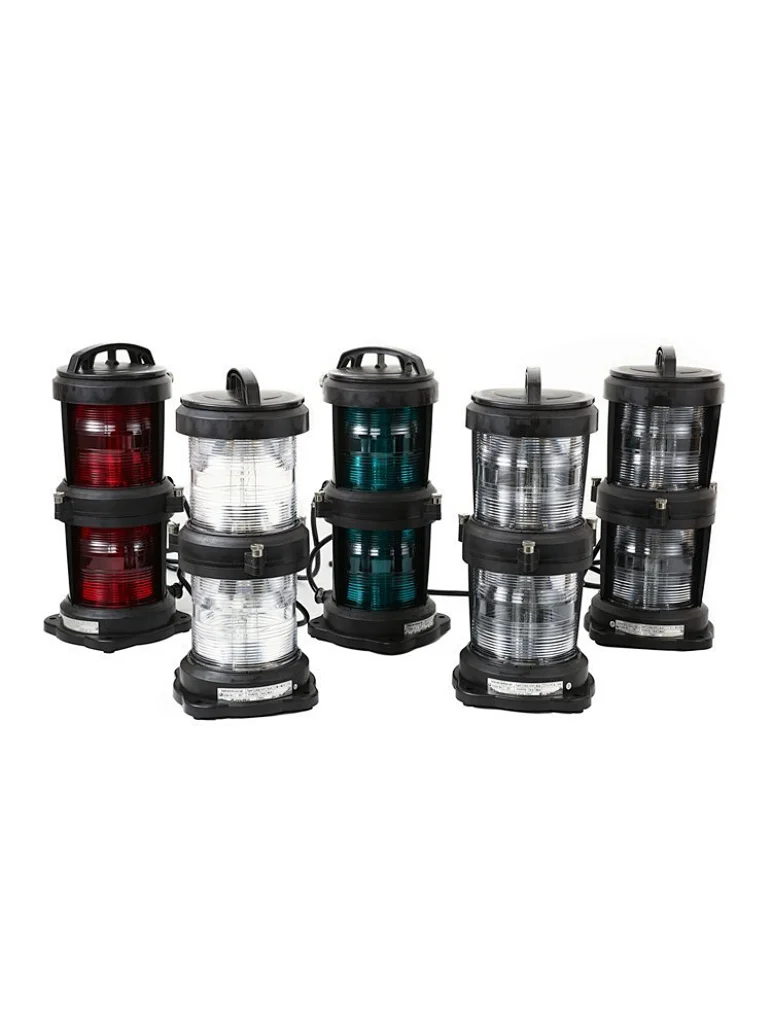

Marine Double-Deck Navigation Signal Light Incandescent P28S 24V/110V/220V 2x60W - CXH-101P
CXH-101P
Application: For Ships More Than 50 Meters As The Signal Lights
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: 24V/110V/220V
Lamp Holder: P28S
Cable Diameter: Φ12-Φ13
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: 24V/110V/220V
Lamp Holder: P28S
Cable Diameter: Φ12-Φ13
Quantity
All lights comply with the requirements of"Convention on the International Regulations for Preventing Collisions at Sea, 1972"of IMCO (Inter-governmental Maritime Consultative Organization). Available with a polycarbonate lens and polycarbonate case or a glass lens and a metal case. Both types meet the regulations for A-2 Class vessels.
Voltage | 24V/110V/220V |
Power | 2*60W/2*65W |
Lamp holder | P28S |
Protection class | IP56 |
Cable outside diameter | Φ12-Φ13 |
IMPA Code | Name | Model | Visibility | Level arc | Color |
370422 | Starboard light | CXH1-101P | 3n.m | 112.5° | Green |
370423 | Port light | CXH2-101P | 3n.m | 112.5° | Red |
370421 | Masthead light | CXH3-101P | 6n.m | 225° | White |
370424 | Stern light | CXH4-101P | 3n.m | 135° | White/Yellow |
370426-370428 | All-round light | CXH6-101P | 3n.m | 360° | Red/Green/White |
