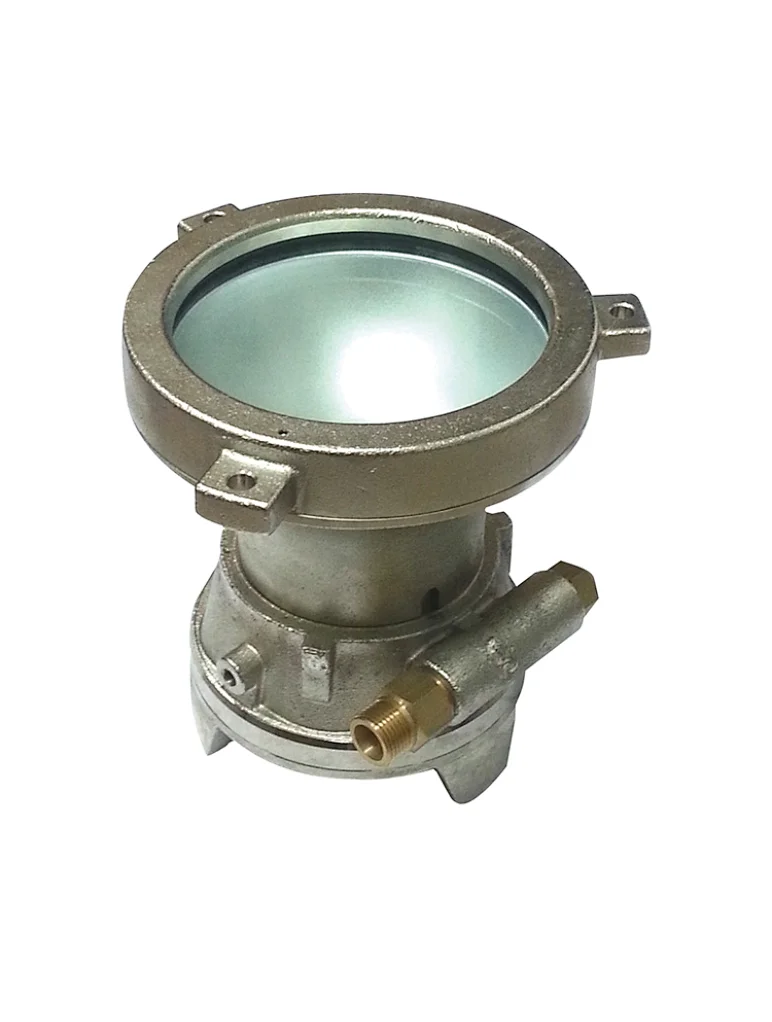

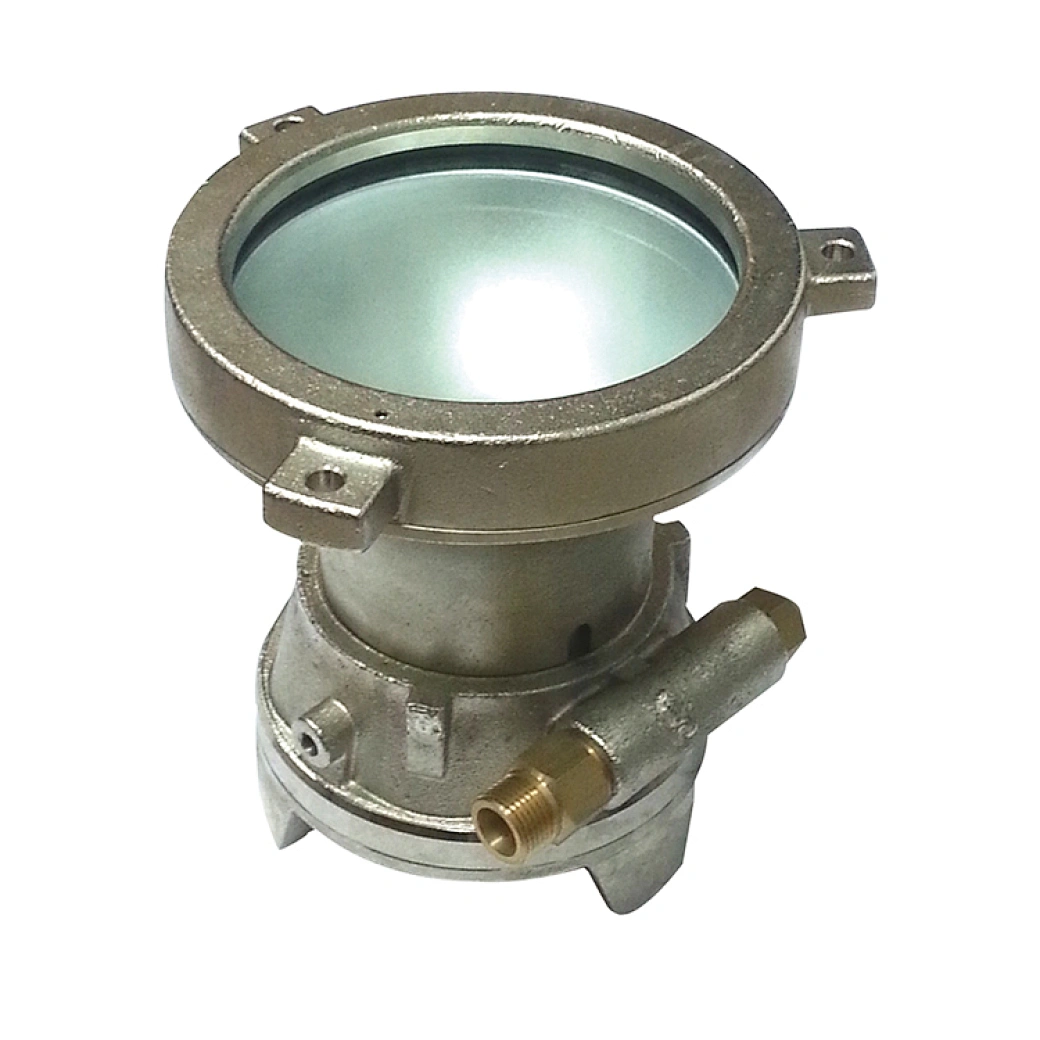

BH250B Exs II T4 Aluminum Air Driven 4.0-8.0 Bar Halogen Beam 24V 250W Explosion Proof Pendant Light
BH250B
Quantity
Model | BH50L | BH80L | BH50L | BH80L | BH250D | BH250B | BH250D | BH250B |
EX code | Exsll T6/DIPA21 Ta,T6 Gb | Exs II T4/DIPA21 TA,T4 Gb | ||||||
Type of protection | “S” type | |||||||
Area of classification | 1 or 2 zone gas, IIA,IIB,IIC ; 21 or 22 zone dust | |||||||
Ambient temperature | -20℃ to +50℃ | |||||||
Enclosure | Brass nickel-plating | Aluminum nickel-plating | Brass nickel-plating | Aluminum nickel-plating | ||||
Beam type | Diffused | Focused | Diffused | Focused | Diffused | Focused | Diffused | Focused |
Pt.no. | Pa101 | Pa102 | Pa101 | Pa102 | Pa103 | |||
Light source | LED | Halogen Bulb | ||||||
Voltage | 24V | |||||||
Wattage | 50W | 84W | 50W | 84W | 250W | |||
Luminous flux | 4800LM | 8000LM | 4800LM | 8000LM | 6000-9000LM | |||
Lifetime | >30000H | <1000H | ||||||
Power source | Compressed air driver | |||||||
Pressure | 4.0-8.0 bar | |||||||
Consumption | < 0.3m3/min | < 0.6m3/min | ||||||
Protection class | IP67 | |||||||
