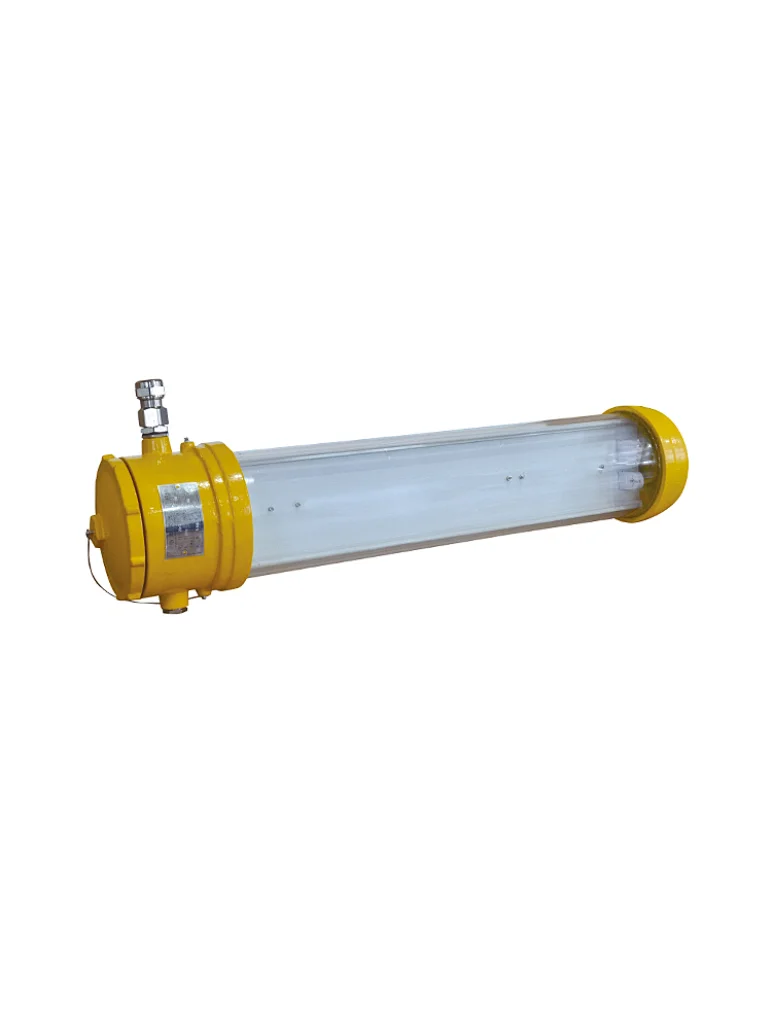

CFY20/CFY40 IMPA 791921 - 791939 Exd IIC T6 Aluminum G13 100-230V 2x20W/2x40W Explosion Proof Fluorescent Light
CFY20 CFY40
Quantity
The scope of application
1. The shell adopts good quality aluminum，good quality PC lampshade, with two glands,adopt fluorescent lamp.
2. The light adopts hang-type installation, and it is covenient to raplace the light-tube etc.
3. The lamp body adopts seal structure, has high waterproof performance and anticorrsion performance.
4. Conform to《 GRADE ENTRY NORMS FOR STEEL SHIPS 》 and national standard GB3836-2000, GB12045, En50014, En50018, En60079.
| Model | CFY20-2 | CFY40-2 |
| Explosion-proof mark | Exd IICT6 | |
| Voltage | 110V/60Hz / 220V/50Hz / 220V/60Hz | |
| Power | 2*20W | 2*40W |
| Lamp holder | G13 | |
| Material | Aluminum | |
| Protection class | IP56 | |
| Cable outside Diameter | Φ13-Φ14 | |
