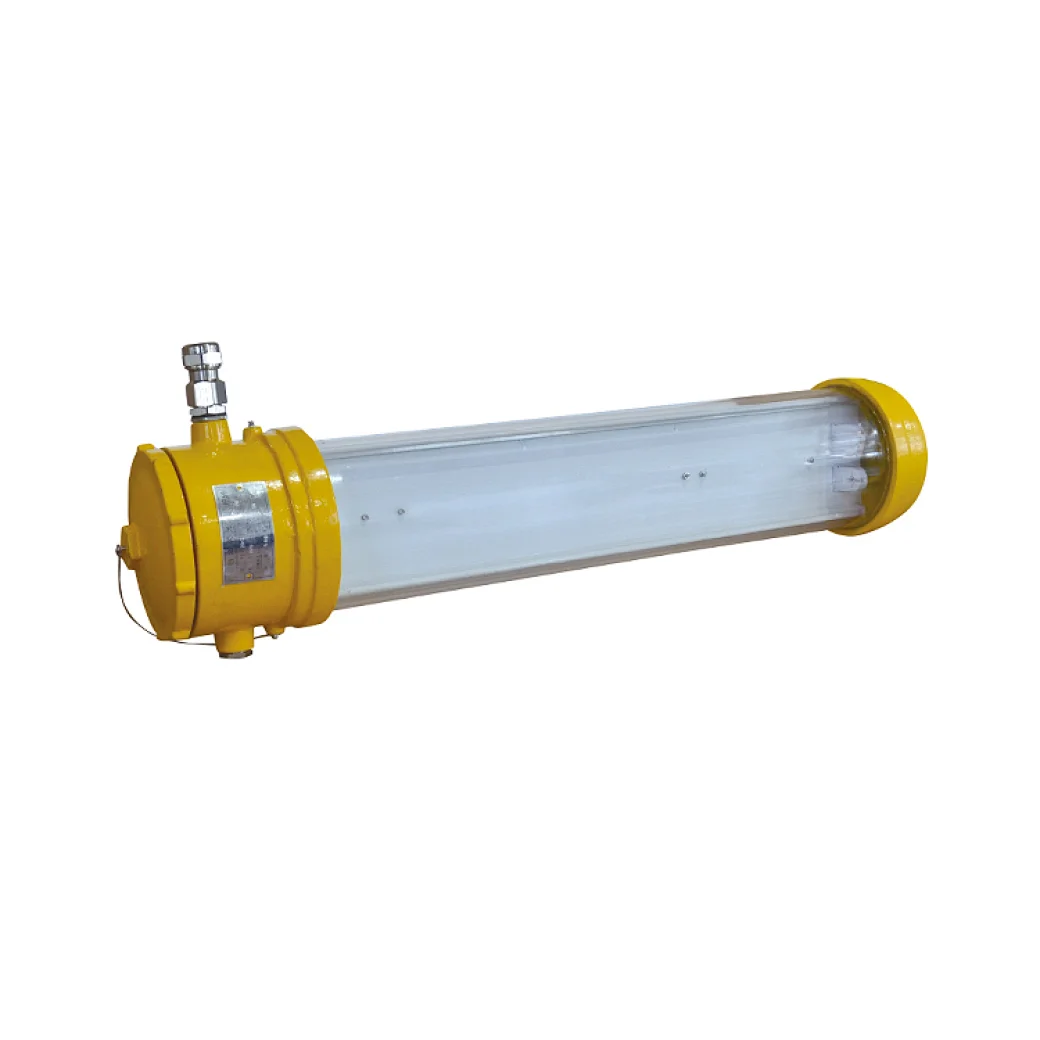

CFY20/CFY40 IMPA 791921 - 791939 Exd IIC T6 Aluminum G13 100-230V 2x20W/2x40W Explosion Proof Fluorescent Light
CFY20 CFY40
Minimum order quantity:
1
Quantity
The scope of application
1. The shell adopts good quality aluminum，good quality PC lampshade, with two glands,adopt fluorescent lamp.
2. The light adopts hang-type installation, and it is covenient to raplace the light-tube etc.
3. The lamp body adopts seal structure, has high waterproof performance and anticorrsion performance.
4. Conform to《 GRADE ENTRY NORMS FOR STEEL SHIPS 》 and national standard GB3836-2000, GB12045, En50014, En50018, En60079.
| Model | CFY20-2 | CFY40-2 |
| Explosion-proof mark | Exd IICT6 | |
| Voltage | 110V/60Hz / 220V/50Hz / 220V/60Hz | |
| Power | 2*20W | 2*40W |
| Lamp holder | G13 | |
| Material | Aluminum | |
| Protection class | IP56 | |
| Cable outside Diameter | Φ13-Φ14 | |
