Marine Double-Deck Navigation Signal Light Incandescent P28S 24V/110V/220V 2x60W - CXH-101P
Application: For Ships More Than 50 Meters As The Signal Lights
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: 24V/110V/220V
Lamp Holder: P28S
Cable Diameter: Φ12-Φ13

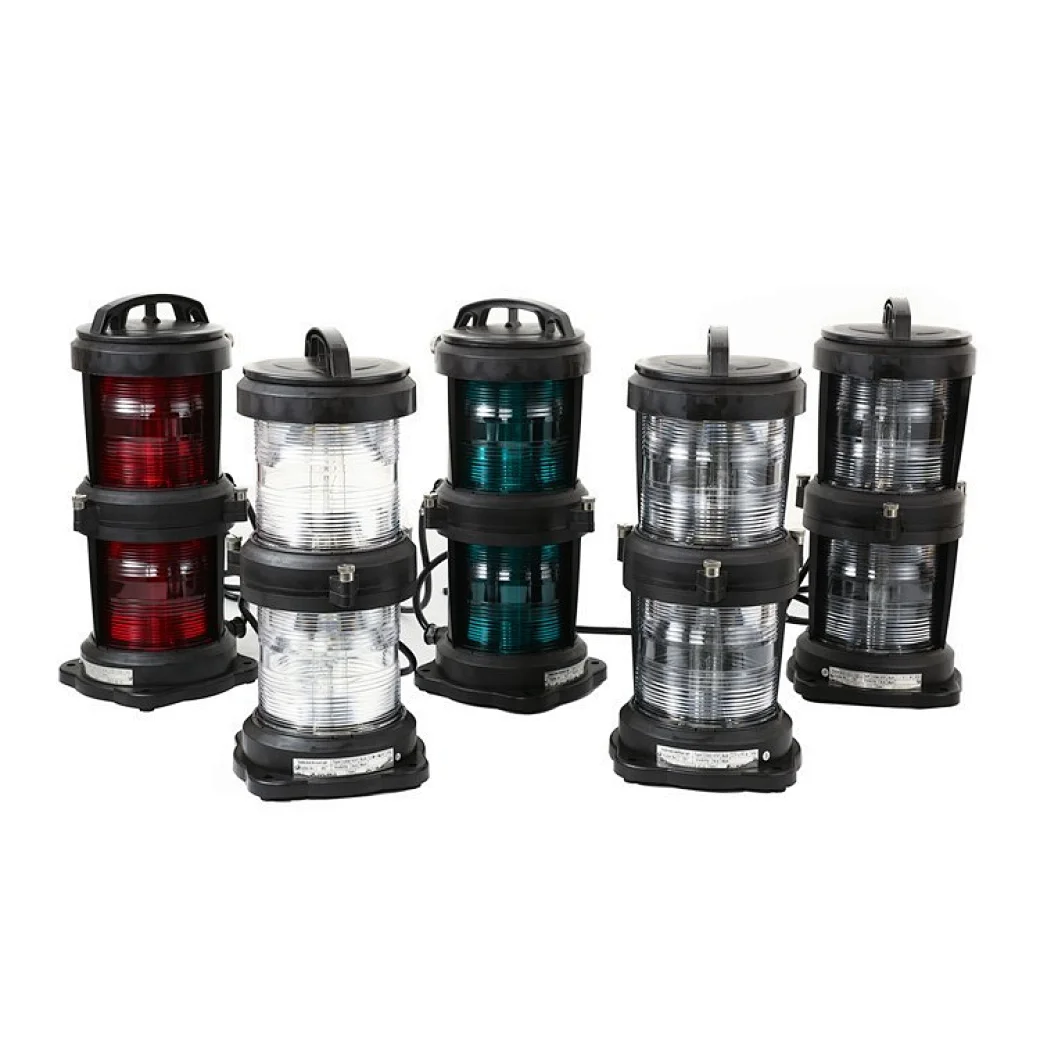

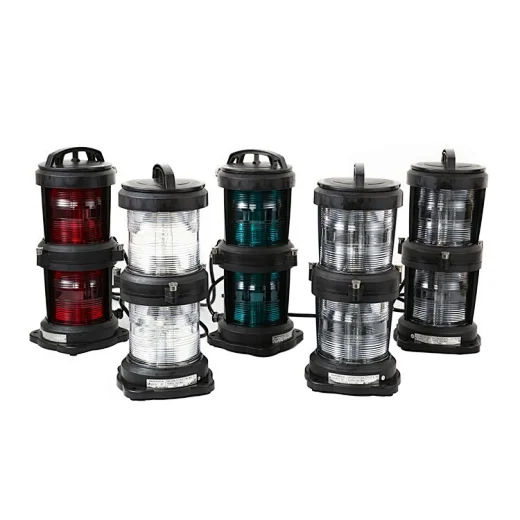

CXH-101P Series Incandescent Navigation Bulb Marine Double-Deck Navigation Signal Light
All lights comply with the requirements of"Convention on the International Regulations for Preventing Collisions at Sea, 1972"of IMCO (Inter-governmental Maritime Consultative Organization). Available with a polycarbonate lens and polycarbonate case or a glass lens and a metal case. Both types meet the regulations for A-2 Class vessels.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.

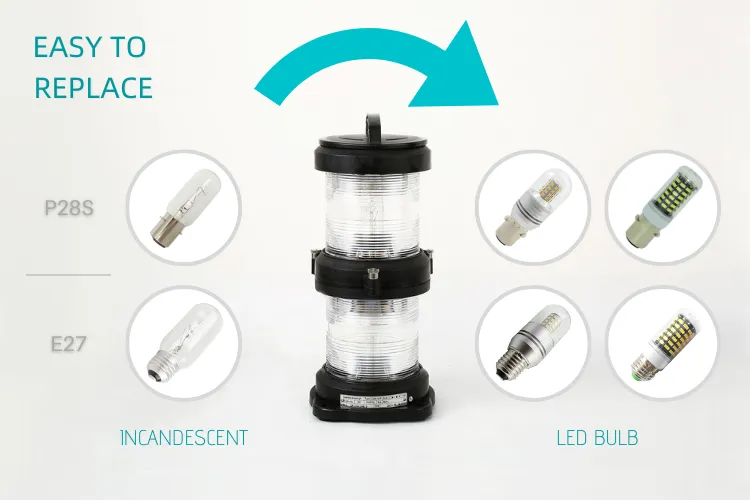

3. The light bulbs and lamp holder adopts plug-in and the bulb can be replaced after open the up cover.
4. The signal lights adopt the navigation bulb, and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃ ~55℃ .
Adopt standard
1. Conform to《THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972》and《GRADE ENTRY NORMS FOR STEEL SHIPS》.
2. Conform to the international standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.
Production authentication
1. Approval by CCS(China Classification Society), certificate number 00518Q30797R1M.
2. Passed the authentication of CE.
3. Patent No.:ZL 2013 2 0504684.X / ZL 201530439138.7 / ZL 201721434370.1
4. By the American Bureau of Shipping"ABS"certification, certificate number 18-SQ1799333-PDA
Voltage | 24V/110V/220V |
Power | 2*60W/2*65W |
Lamp holder | P28S |
Protection class | IP56 |
Cable outside diameter | Φ12-Φ13 |
IMPA Code | Name | Model | Visibility | Level arc | Color |
370422 | Starboard light | CXH1-101P | 3n.m | 112.5° | Green |
370423 | Port light | CXH2-101P | 3n.m | 112.5° | Red |
370421 | Masthead light | CXH3-101P | 6n.m | 225° | White |
370424 | Stern light | CXH4-101P | 3n.m | 135° | White/Yellow |
370426-370428 | All-round light | CXH6-101P | 3n.m | 360° | Red/Green/White |
