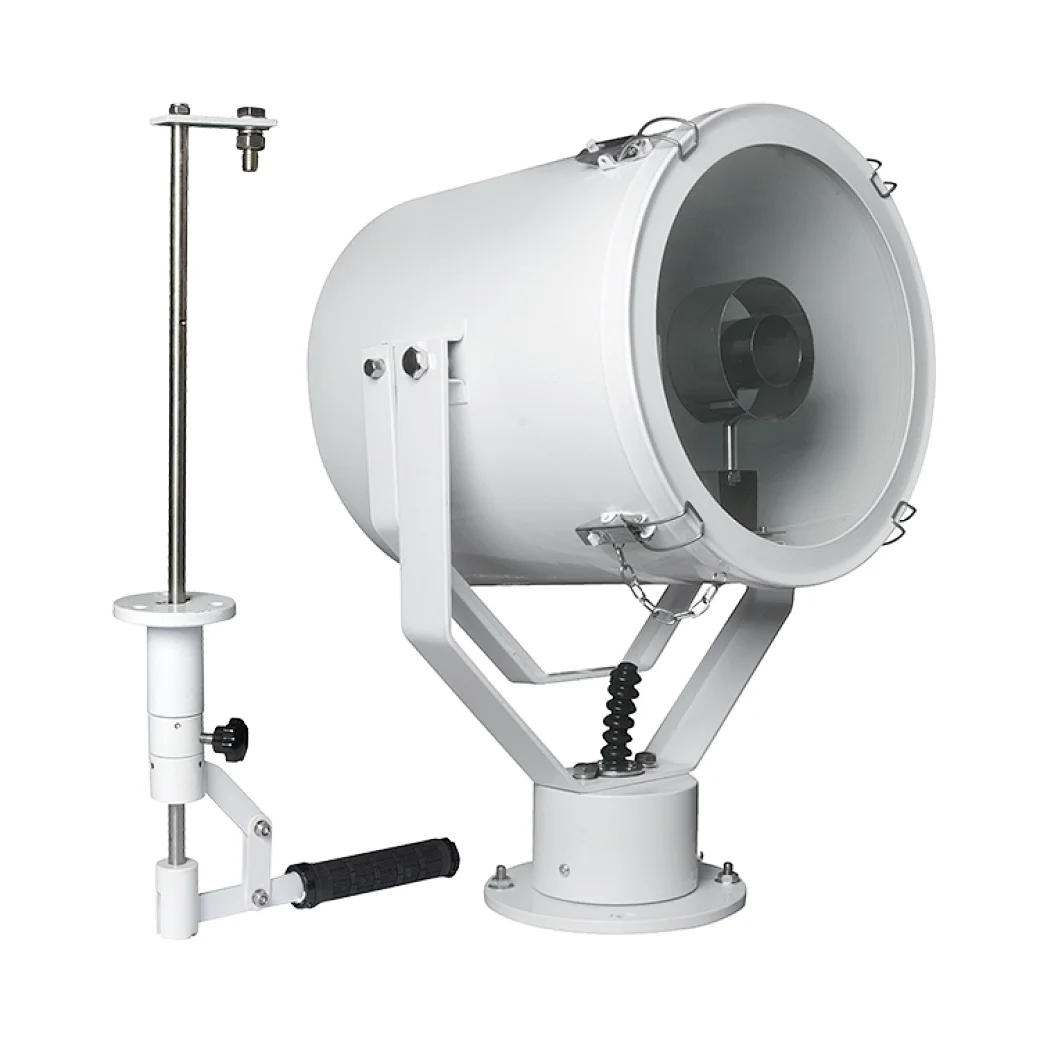

TG26/TG27/TG28 IMPA 370481 370482 S.S. Halogen 24-220V 250-2000W Marine Searchlight With Lifter

TG26 TG27 TG28
Minimum order quantity:
1
Quantity
Contact Now
Add To Cart

The scope of application

1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the complex water area, such as narrow channel and the inland river riverway etc.

2. Approval by CCS(China Classification Society), certificate number 00515Q20619R0M.

Products characteristic

1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.

2. The lamp bend for +30° degrees by joy stick, adjust 350° degrees horizontally,

equipped joy stick.

3. Parallel light-beam, far illumination distance, concentrated light.

4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .

Model

TG26

TG27

IMPA Code

370481-370482

Voltage

24V

220V/50Hz / 220V/60Hz

Power

250W

300W / 500W

1000W

Luminous flux

5600LM

6900 / 12500LM

23000LM

Lamp holder

G6.35

GY9.5

GX9.5

Light source

Tungsten halogen lamp

Material

Stainless steel

Protection class

IP56

Cable outside Diameter

Φ10-Φ12

Annex

Control lever

TG28

The scope of application

1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the complex water area, such as narrow channel and the inland river riverway etc.

2. Approval by CCS(China Classification Society), certificate number 00515Q20619R0M.

Products characteristic

1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.

2. The lamp bend for +30° degrees by joy stick, adjust 350° degrees horizontally,

equipped joy stick.

3. Parallel light-beam, far illumination distance, concentrated light.

4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .

Model

TG28

IMPA Code

370481-370482

Voltage

220V/50Hz / 220V/60Hz

Power

2000W

Luminous flux

53000LM

Lamp holder

GY16

Light source

Tungsten halogen lamp

Material

Stainless steel

Protection class

IP56

Cable outside Diameter

Φ10-Φ12

Annex

Control lever
