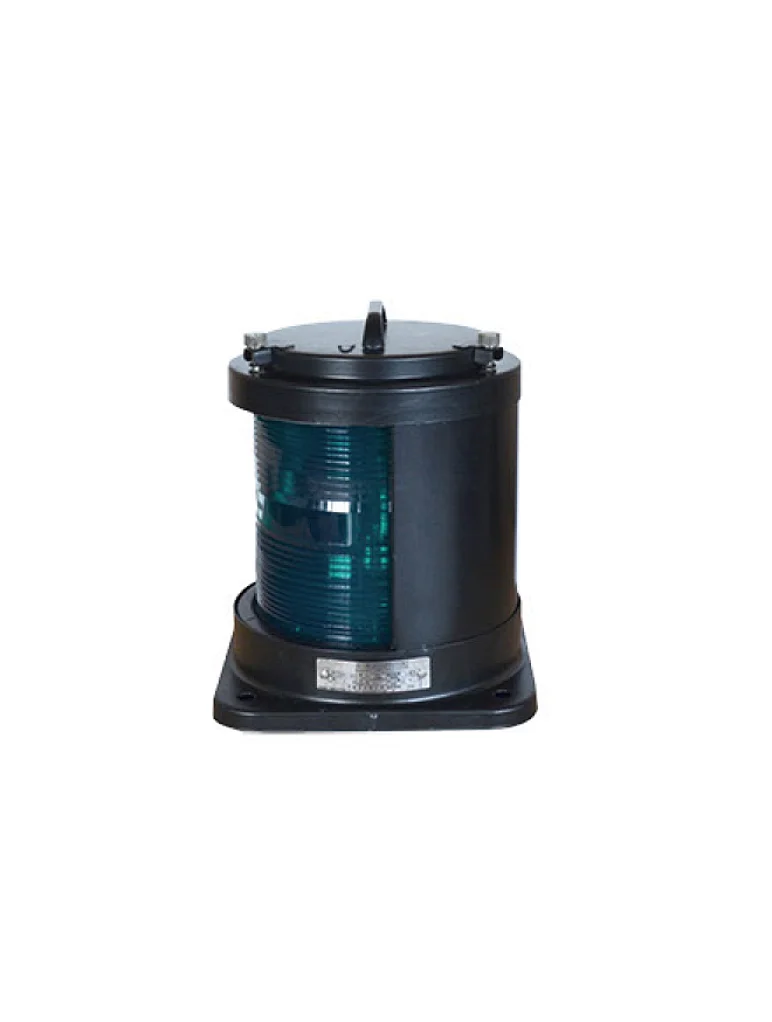

CXH-1D SINGLE-DECK NAVIGATION SIGNAL LIGHT
CXH-1D
Quantity
Contact Now
Add To Cart

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signalliaison when night navigation.

Products characteristic

1. It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.

2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.

3. The lampshade adopts polycarbonate, it has the feature of ultraviolet radiation resistance and does not discolor ect.



Voltage

24V/110V/220V

Power

60W/65W

Lamp holder

E27

Protection class

IP55

Cable outside diameter

Φ12-Φ16



IMPA Code

Name

Model

Visibility

Level arc

Color

370442

Starboard light

CXH1-1D

3n.m

112.5°

Green

370443

Port light

CXH2-1D

3n.m

112.5°

Red

370441

Masthead light

CXH3-1D

6n.m

225°

White

370444

Stern light

CXH4-1D

3n.m

135°

White/Yellow

370446-370448

All-round light

CXH6-1D

3n.m

360°

Red/Green/White
