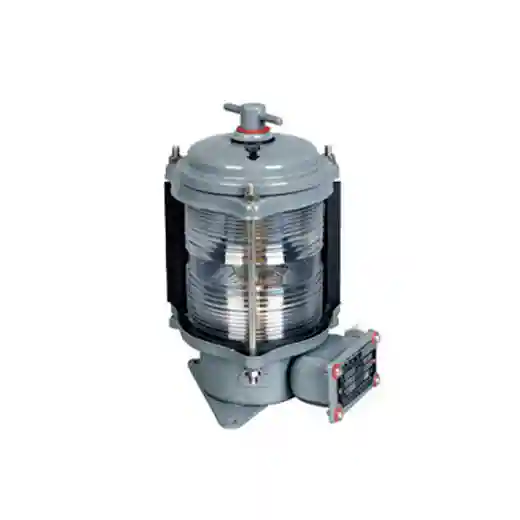

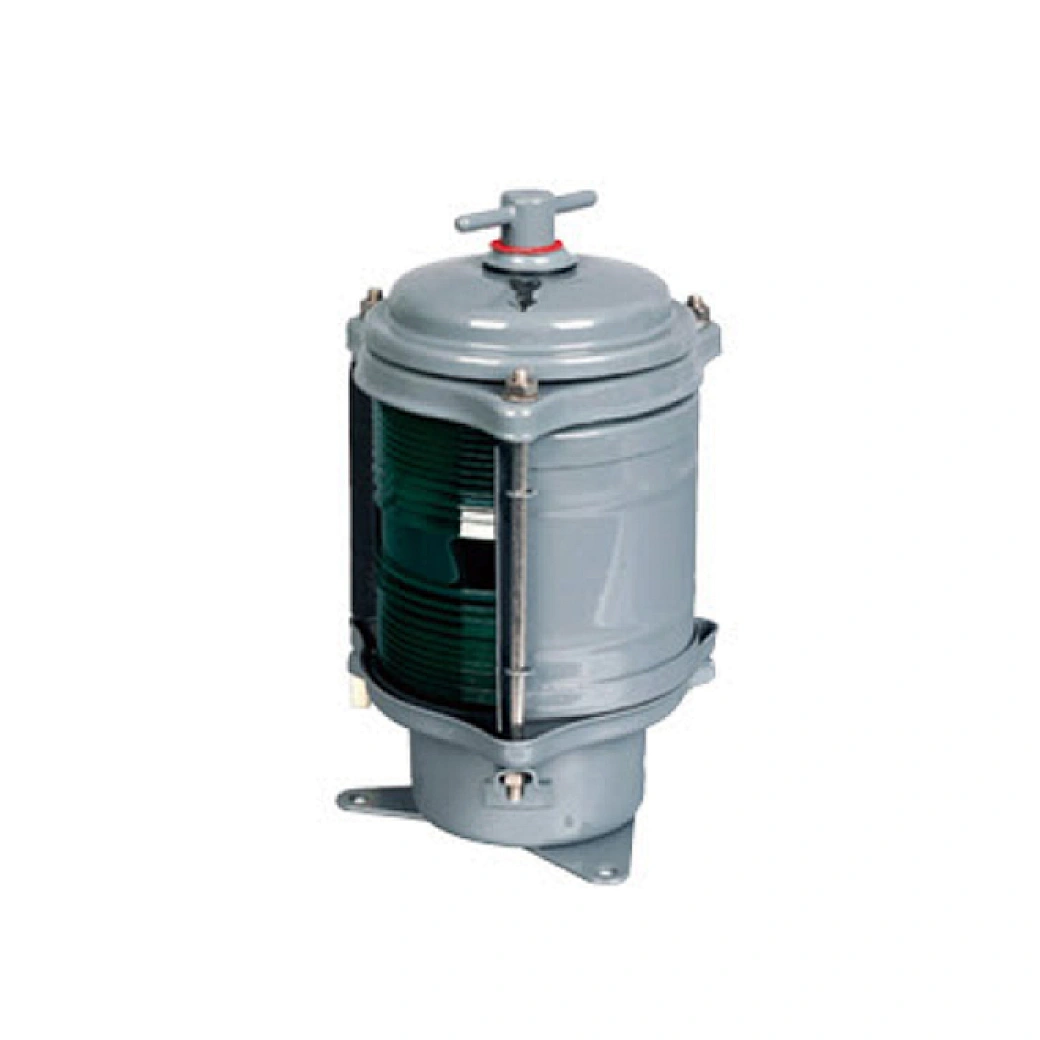

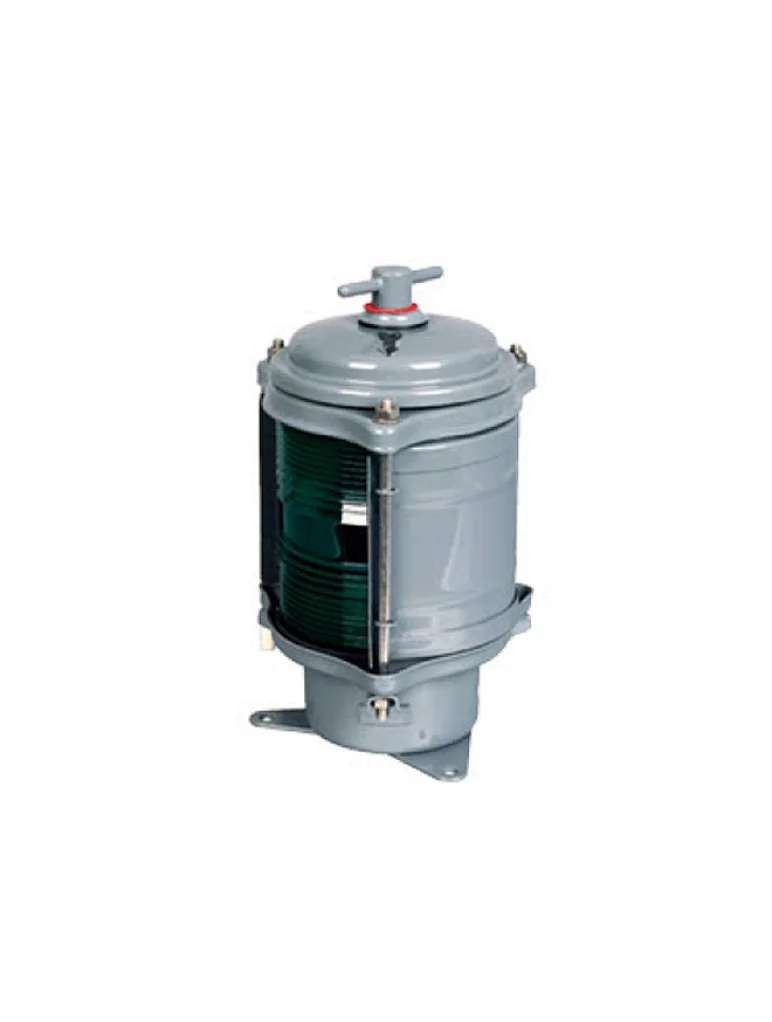

CXH-2C SINGLE-DECK NAVIGATION SIGNAL LIGHT
CXH-2C
Quantity
Voltage | 24V |
Power | 30W |
Lamp holder | B15d |
Protection class | IP55 |
Cable outside diameter | Φ10-Φ12 |
Name | Model | Visibility | Level arc | Color |
Starboard light | CXH1-2C | 2n.m | 112.5° | Green |
Port light | CXH2-2C | 2n.m | 112.5° | Red |
Masthead light | CXH3-2C | 5n.m | 225° | White |
Stern light | CXH4-2C | 2n.m | 135° | White/Yellow |
All-round light | CXH6-2C | 2n.m | 360° | Red/Green/White |
