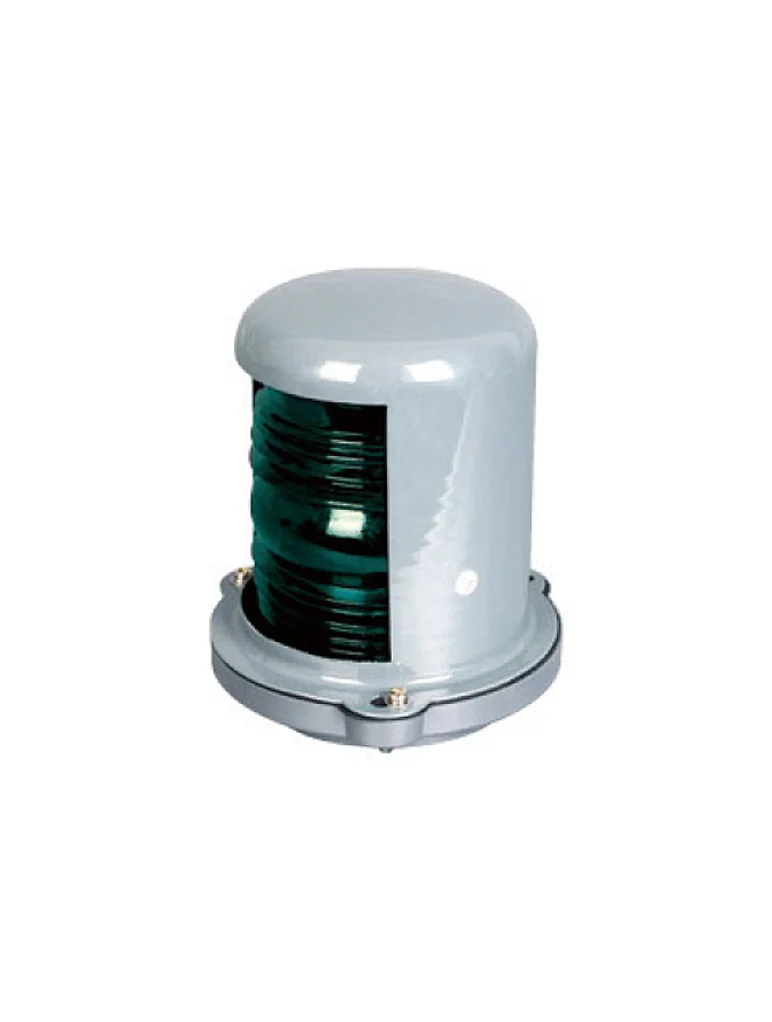

CXH-3 SINGLE-DECK NAVIGATION SIGNAL LIGHT
CXH-3
Quantity
Contact Now
Add To Cart

The scope of application

Applied to the ships with the length less than 12m as lamp signal liaison when night navigation.

Products characteristic

1. It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.

2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.

3. The lampshade adopts good quality glass, and it has good function of illumination.



Voltage

12V/24V

Power

25W

Lamp holder

B15d

Protection class

IP55

Cable outside diameter

Φ14

Name

Model

Visibility

Level arc

Color

Starboard light

CXH1-3

1n.m

112.5°

Green

Port light

CXH2-3

1n.m

112.5°

Red

Masthead light

CXH3-3

2n.m

225°

White

Stern light

CXH4-3

2n.m

135°

White/Yellow

All-round light

CXH6-3

2n.m

360°

Red/Green/White
