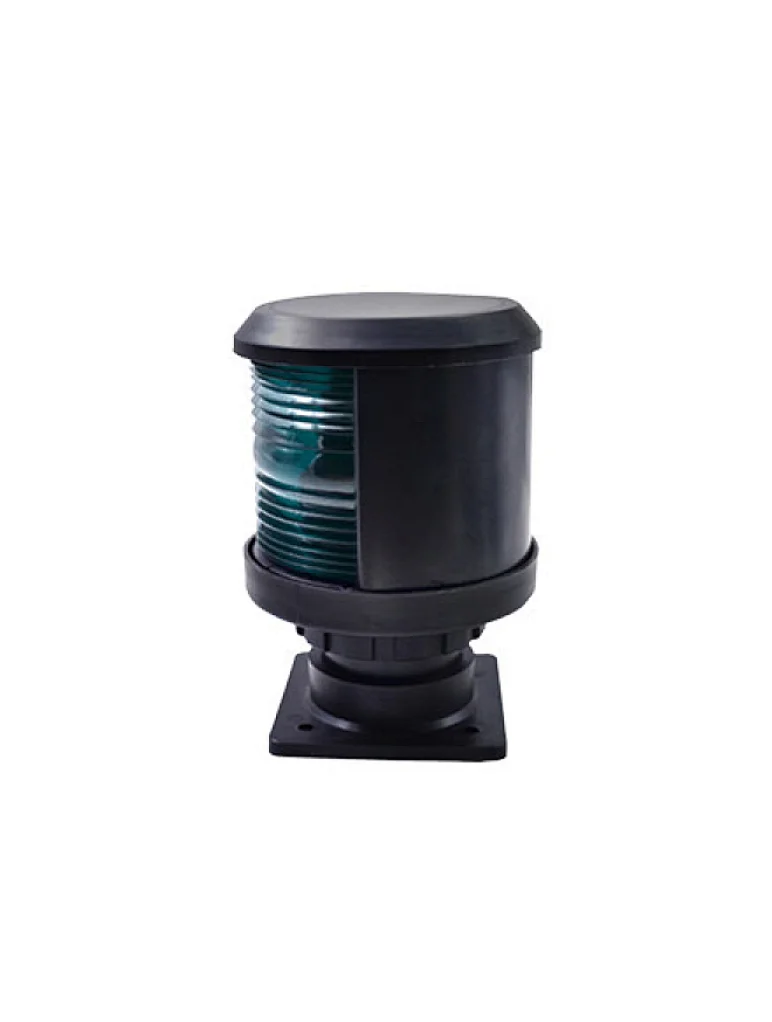

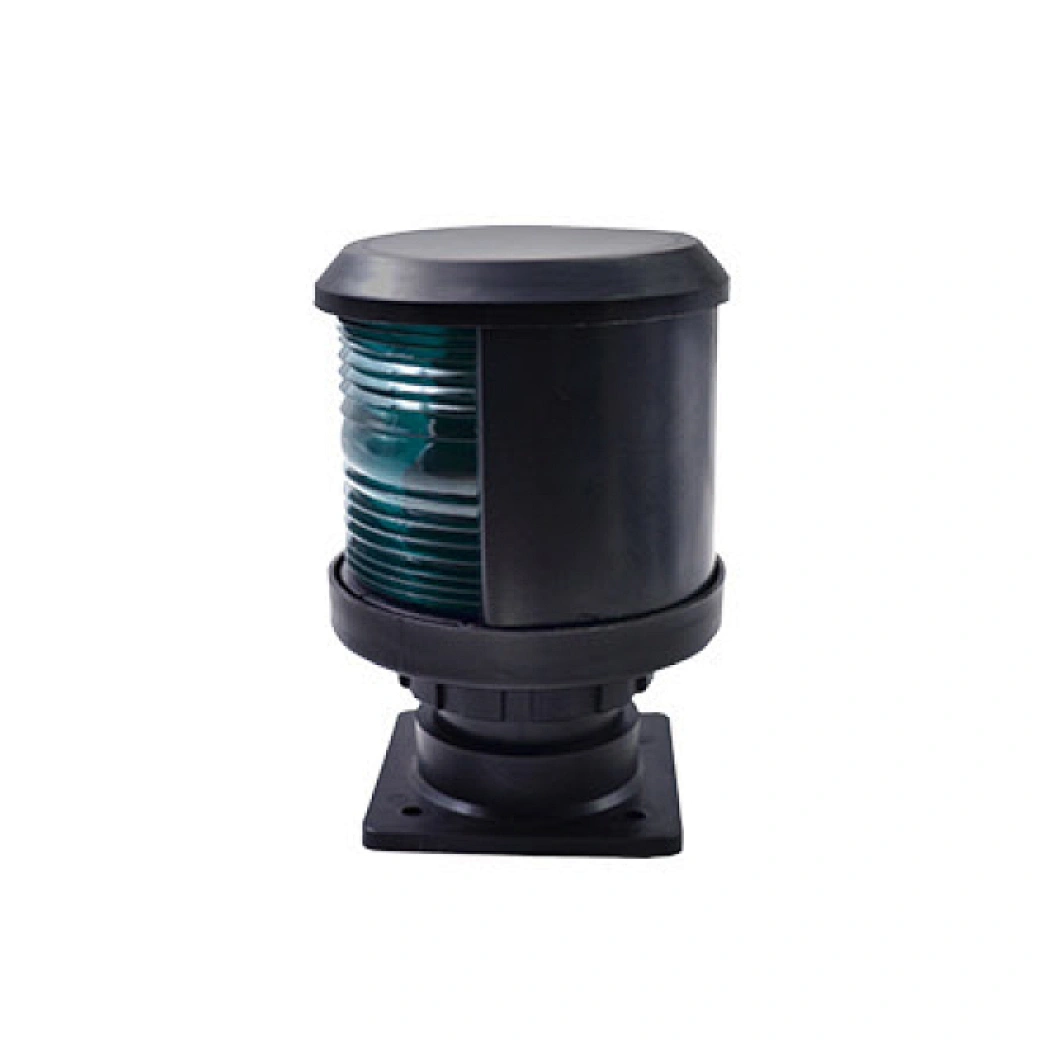

CXH-3P NAVIGATION SIGNAL LIGHT
The scope of application
Fit for the ships with the length less than 12m as lamp signal when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopt the high quality brass alloy.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The signal lights choice the special signal bulb which conform to the ship norm, it can replace bulb when open the up cover.
4. The sianal liahts can work normallv under the temoerature -30℃ ~55℃ .
Voltage | 12V/24V |
Power | 25W |
Lamp holder | B15d |
Protection class | IP56 |
Cable outside diameter | Φ10-Φ12 |
Name | Model | Visibility | Level arc | Color |
Starboard light | CXH1-3P | 1n.m | 112.5° | Green |
Port light | CXH2-3P | 1n.m | 112.5° | Red |
Masthead light | CXH3-3P | 2n.m | 225° | White |
Stern light | CXH4-3P | 2n.m | 135° | White/Yellow |
All-round light | CXH6-3P | 2n.m | 360° | Red/Green/White |
