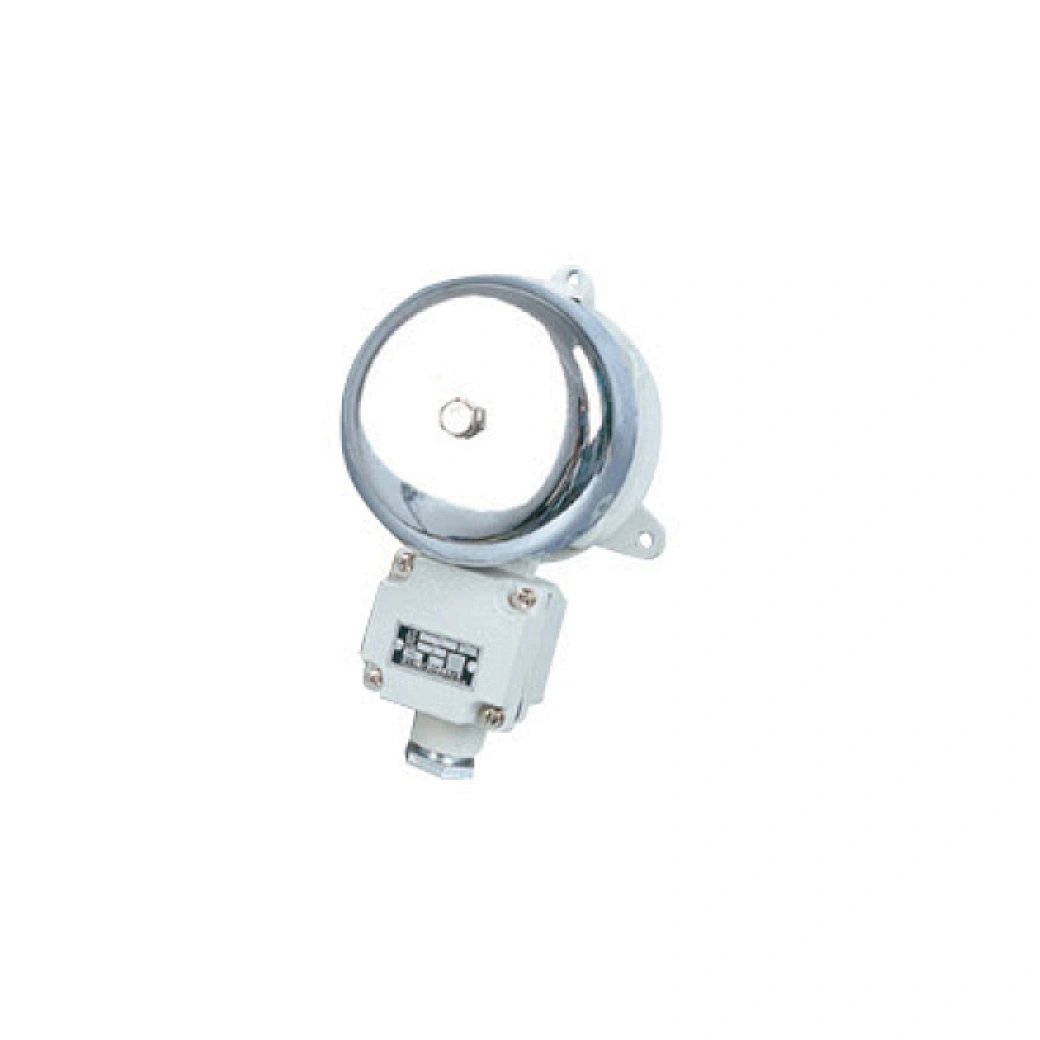

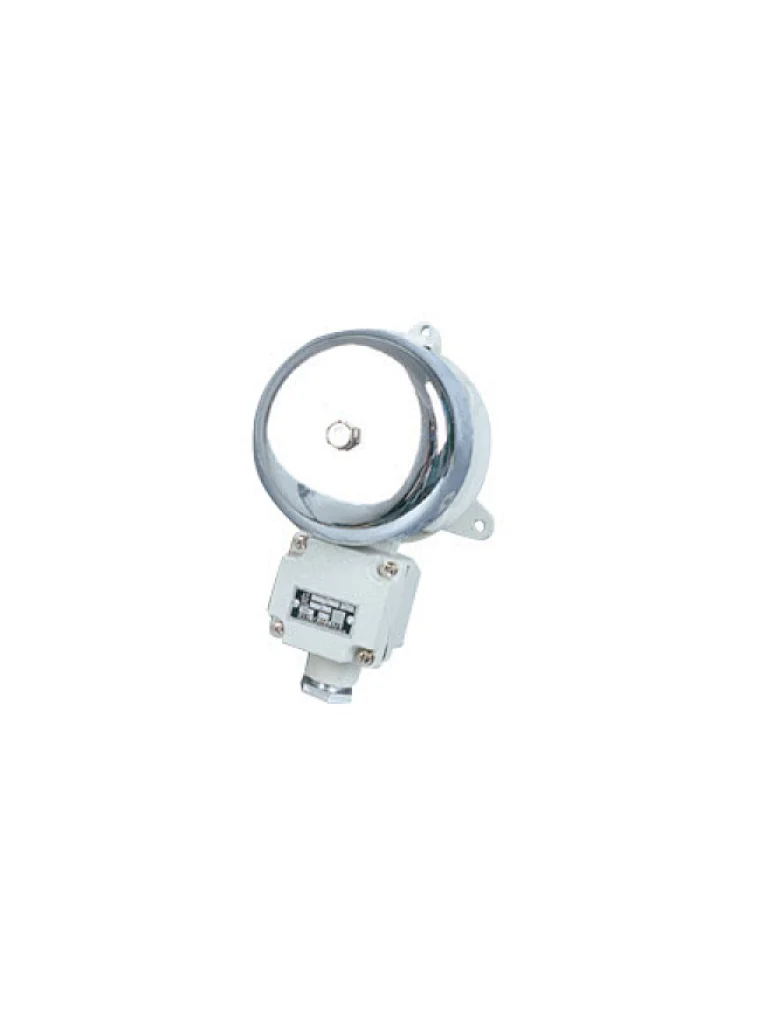

IMPA 793441 793443 793444 YL120 Marine Bell 24/110/220V 85dB
793431-793434 / YL120
Sound signals is an important and simple communication and alarm tool on the ship, which can send out special signals in time to indicate the occurrence of some abnormal phenomenon. lt is also a supporting instrument for the ship's telephone, communication equipment, teltgraph and other electrical equipment.
Protection Class: IP56
Cable: Φ14-Φ16
Operation Temperature: -25*C to +55°C
Remarks: When the power supply voltage is within the range of DC +15% and AC+6% to +10% of the rated value, it can work reliably and ite sound intensity is not less than the specified value.
Protection Class: IP56
Cable: Φ14-Φ16
Operation Temperature: -25*C to +55°C
Remarks: When the power supply voltage is within the range of DC +15% and AC+6% to +10% of the rated value, it can work reliably and ite sound intensity is not less than the specified value.
Quantity

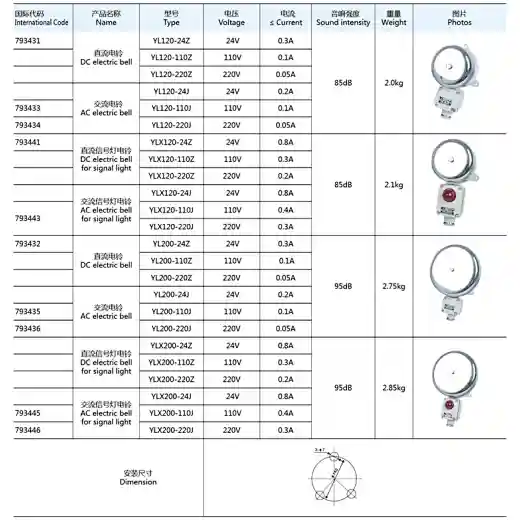

Name | DC electric bell | AC electric bell | ||||
Model | YL120-24Z | YL120-110Z | YL120-220Z | YL120-24J | YL120-110J | YL120-220J |
Voltage | 24V | 110V | 220V | 24V | 110V | 220V |
Current | 0.3A | 0.1A | 0.05A | 0.2A | 0.1A | 0.05A |
IMPA Code | 793431 | 793433 | 793434 | |||
Sound intensity | 85dB | |||||
IP Grade | IP56 | |||||
Cable diameter | Φ14-Φ16 | |||||
