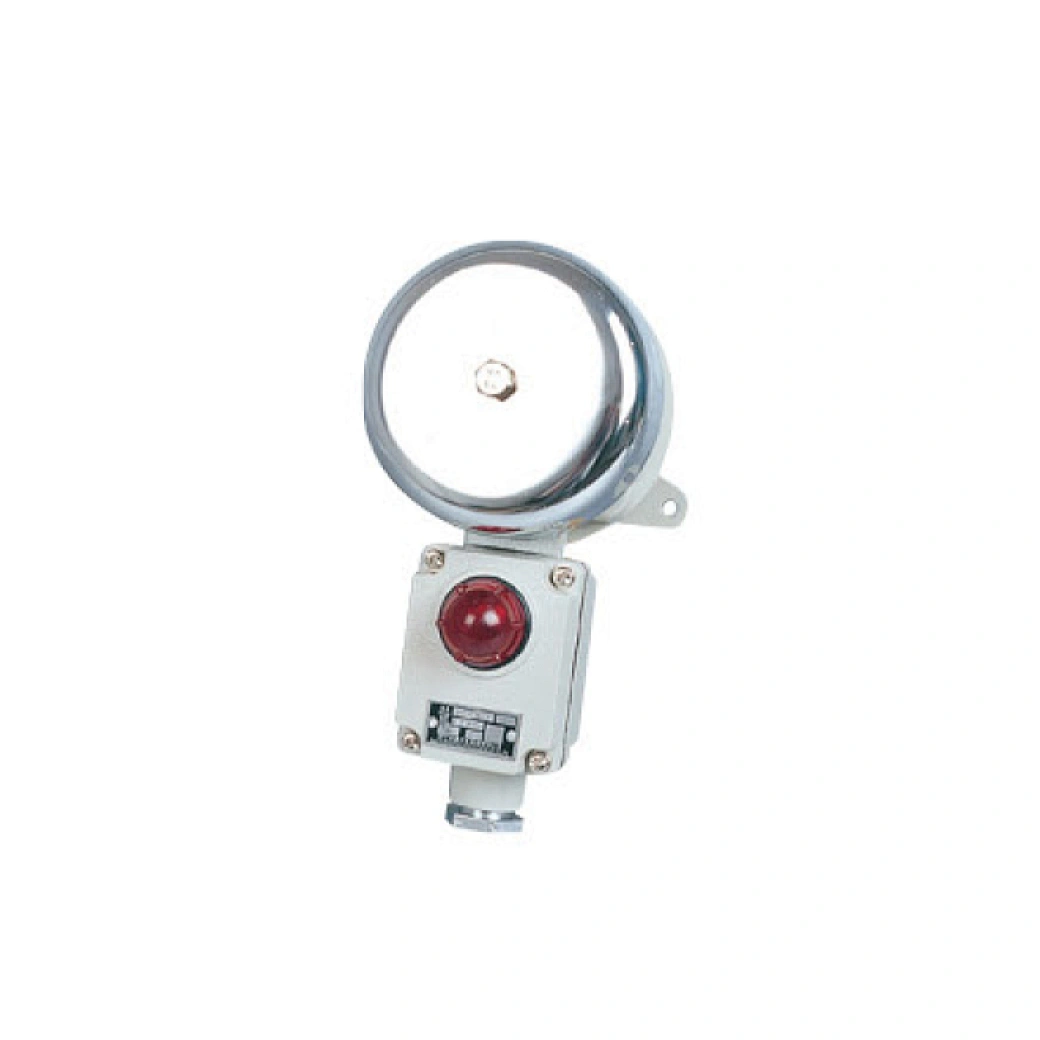

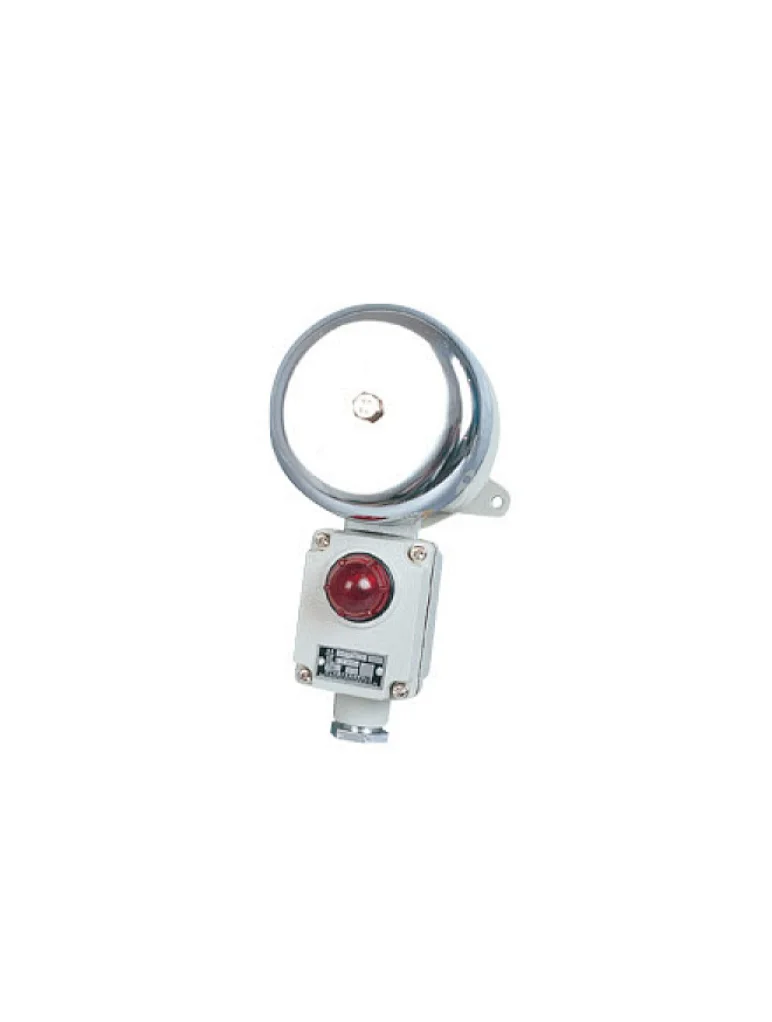

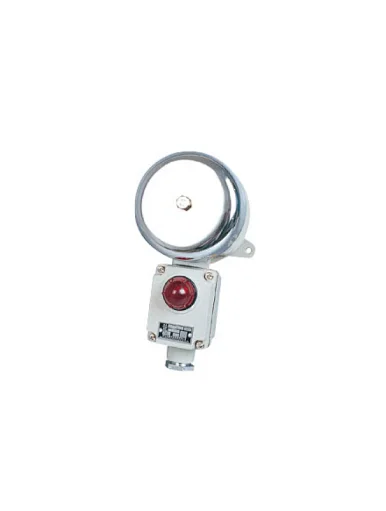

IMPA 793441 793443 793444 YLX120 Marine Bell 24/110/220V 86dB
793441-793444 / YLX120
Sound signals is an important and simple communication and alarm tool on the ship, which can send out special signals in time to indicate the occurrence of some abnormal phenomenon. lt is also a supporting instrument for the ship's telephone, communication equipment, teltgraph and other electrical equipment.

Protection Class: IP56
Cable: Φ14-Φ16
Operation Temperature: -25*C to +55°C
Remarks: When the power supply voltage is within the range of DC +15% and AC+6% to +10% of the rated value, it can work reliably and ite sound intensity is not less than the specified value.
Quantity
Contact Now
Add To Cart


Name

DC electric bell with signal light

AC electric bell with signal light

Model

YLX120-24Z

YLX120-110Z

YLX120-220Z

YLX120-24J

YLX120-110J

YLX120-220J

Voltage

24V

110V

220V

24V

110V

220V

Current

0.8A

0.3A

0.2A

0.8A

0.4A

0.3A

IMPA Code

793441

793443

793444

Sound intensity

85dB

IP Grade

IP56

Cable diameter

Φ14-Φ16
