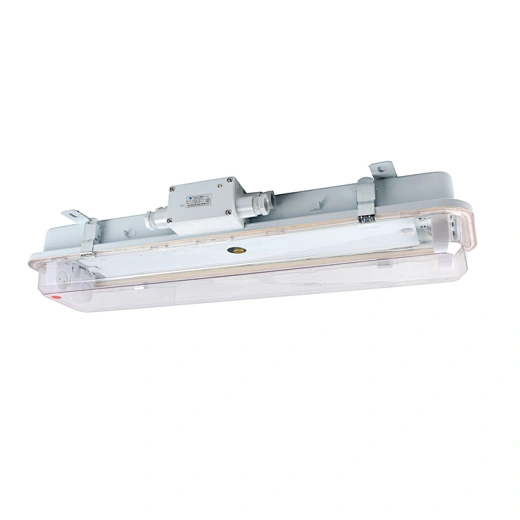

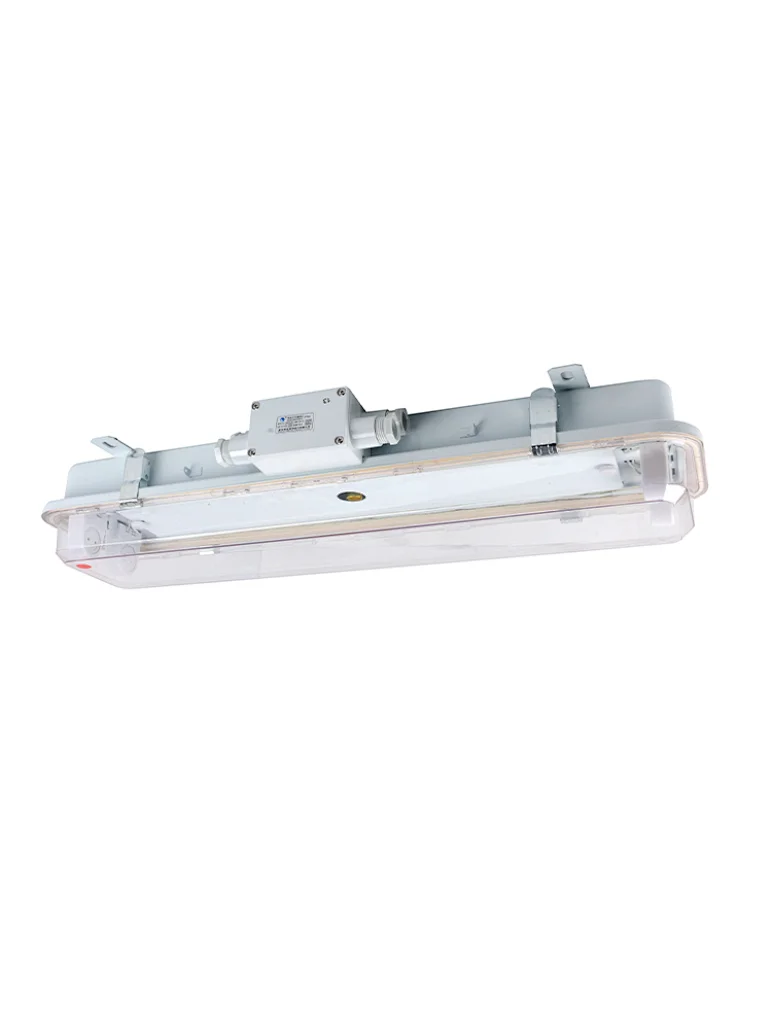

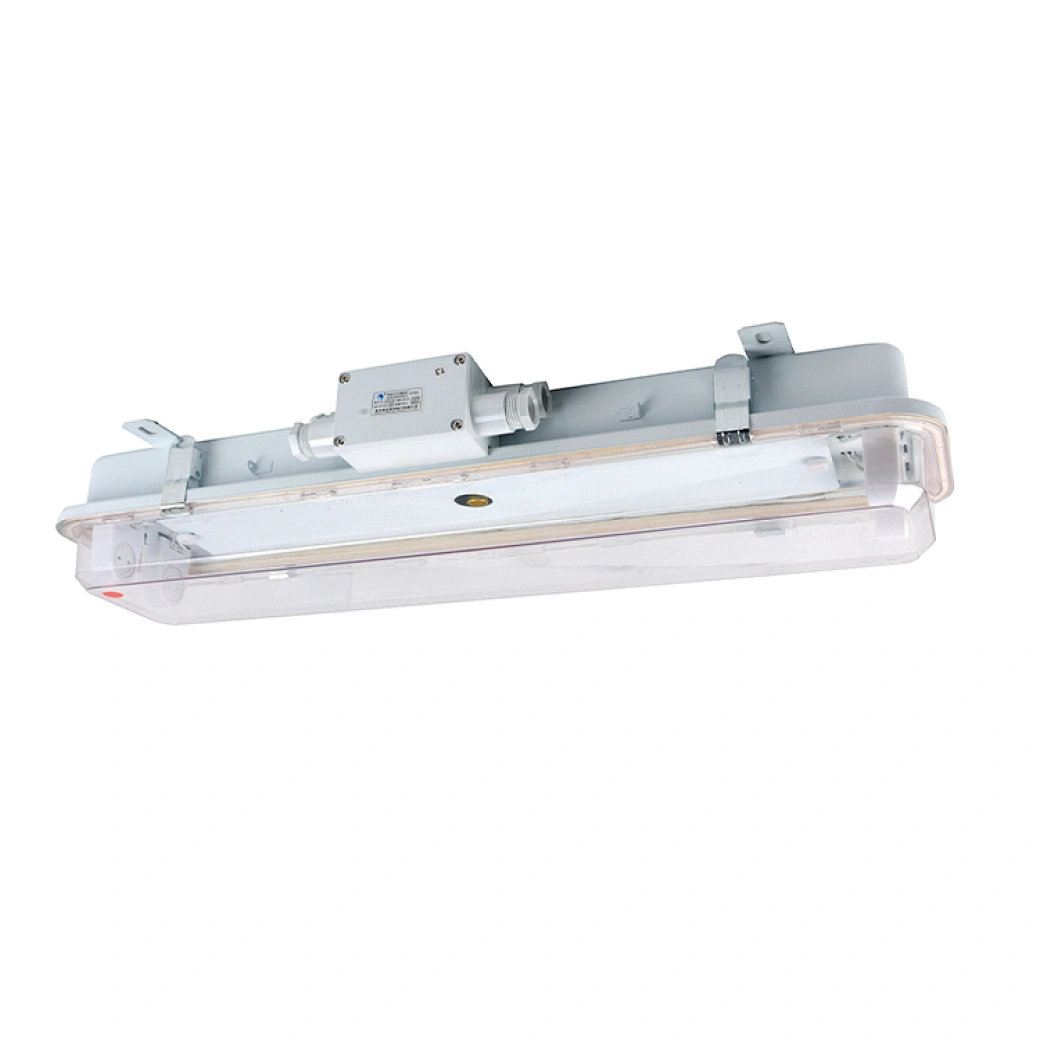

JCY26 Marine Fluorescent Pendant Light
JCY26
Standard: CB/T3857-1999
Material: Shell: Steel | Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
Material: Shell: Steel | Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
Quantity
Model | JCY26-1 | JCY26-2 | JCY26-2E | JCY26-2EF |
Power | 1*20W | 2*20W | 2*20W | 2*20W |
Compensation capacitor | 4.75μf | 7.5μf | 7.5μf | 7.5μf |
Voltage | 110V/60Hz / 220V/50Hz / 220V/60Hz | |||
Power factor | ＞0.85 | |||
Lamp holder | G13 | |||
Protection class | IP56 | |||
Cable outside diameter | Φ12-Φ16 | |||
Annex | JCY26-2E with B15d emergency lamp holder JCY26-2EF with B15d emergency lamp holder and metal guard | |||
