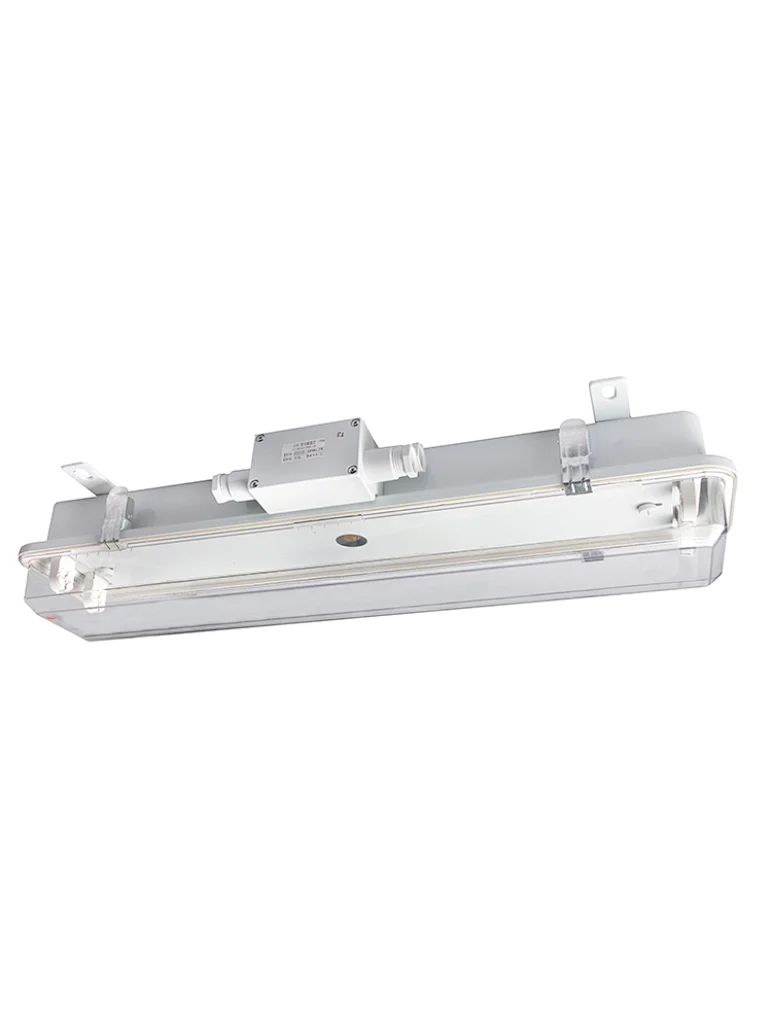

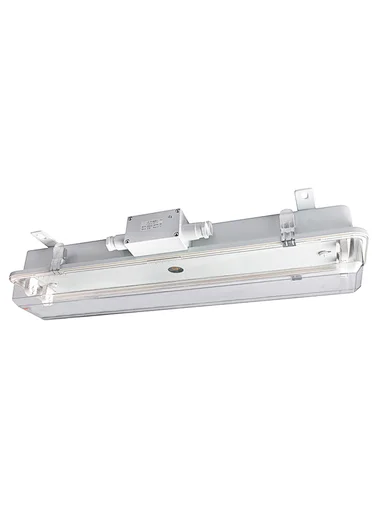

JCYA23 JCYA43 Marine Fluorescent Pendant Light
JCYA23 JCYA43
Standard: JISF8008-2002
Material: Shell: Steel | Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
Temp Range: -20℃ to 55℃
Material: Shell: Steel | Lampshade: PC
Rated Voltage: 110V/60Hz, 220V/50Hz/60Hz
Protection Class: IP56
Lamp Holder: G13
Power Factor: >0.85
Cable: Φ12~Φ16
Temp Range: -20℃ to 55℃
Quantity
Model | JCYA23-1 | JCYA23-2E | JCYA43-1 | JCYA43-2E |
Power | 1*20W | 2*20W | 1*40W | 2*40W |
Compensation capacitor | 4.75μf | 7.5μf | 7.5μf | 7.5μf |
Voltage | 110V/60Hz / 220V/50Hz / 220V/60Hz | |||
Power factor | ＞0.85 | |||
Lamp holder | G13 | |||
Protection class | IP56 | |||
Cable outside diameter | Φ12-Φ16 | |||
Annex | JCYA23-2E & JCYA43-2E with B15d emergency lamp holder | |||
