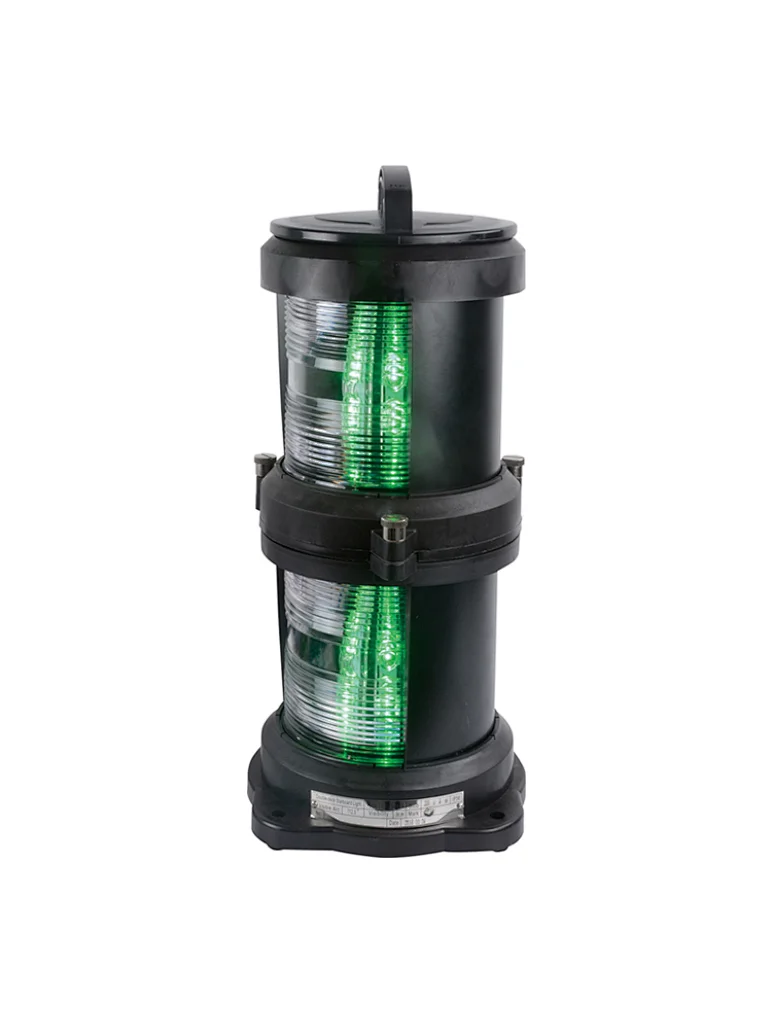

Marine Double-Deck Navigation Signal Light LED DC24V AC100-240V 2x8W - CXH-101PL
CXH-101PL
Application: For Ships More Than 50 Meters As The Signal Lights
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: AC100-240V, 50/60HZ, DC24V
Lamp Holder: LED
Cable Diameter: Φ10-Φ12
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: AC100-240V, 50/60HZ, DC24V
Lamp Holder: LED
Cable Diameter: Φ10-Φ12
Quantity
All lights comply with the requirements of"Convention on the International Regulations for Preventing Collisions at Sea, 1972"of IMCO (Inter-governmental Maritime Consultative Organization). Available with a polycarbonate lens and polycarbonate case or a glass lens and a metal case. Both types meet the regulations for A-2 Class vessels.
Voltage | AC100-240V DC24V 50/60Hz |
Power | 2*8W LED |
Protection class | IP56 |
Cable outside diameter | Φ10-Φ12 |
Name | Model | Visibility | Level arc | Color |
Starboard light | CXH1-101PL | 3n.m | 112.5° | Green |
Port light | CXH2-101PL | 3n.m | 112.5° | Red |
Masthead light | CXH3-101PL | 6n.m | 225° | White |
Stern light | CXH4-101PL | 3n.m | 135° | White/Yellow |
All-round light | CXH6-101PL | 3n.m | 360° | Red/Green/White |
