Marine Navigation Signal Light BAY15d DC12-24V 1x25W - CXH-21P
Standard: GB/T 3028-1995, IEC60598-1-2008
Certification: ABS
Temperature: -30℃ to 55℃
Feature: Single Deck
Material: Shell: PA+GF | Lampshade: PC | Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: 12V/24V
Lamp Holder: BAY15d
Cable Diameter: Φ8
The scope of application
Applied to the ships with the length 12m or above 12m(＜50m) as lamp signalliaison when night navigation.
Products characteristic
1.The shell is made of high-strength engineering plastic PA+GF, thelampshade adopts injection of PC, lens hood adopts good qualitystainless steel.
2.The signal lights have the whole seal structure, it is waterproof under thebad environment.
3.The signal lights uses exclusive LED illuminant which accords with shiprules and reguations, More energy effi cient, longer working life.
4.The signal lights can work normally under the temperature -30℃ ~55℃ .
Voltage | 12V/24V |
Power | 25W |
Lamp holder | BAY15d |
Protection class | IP56 |
Cable outside diameter | Φ8 |

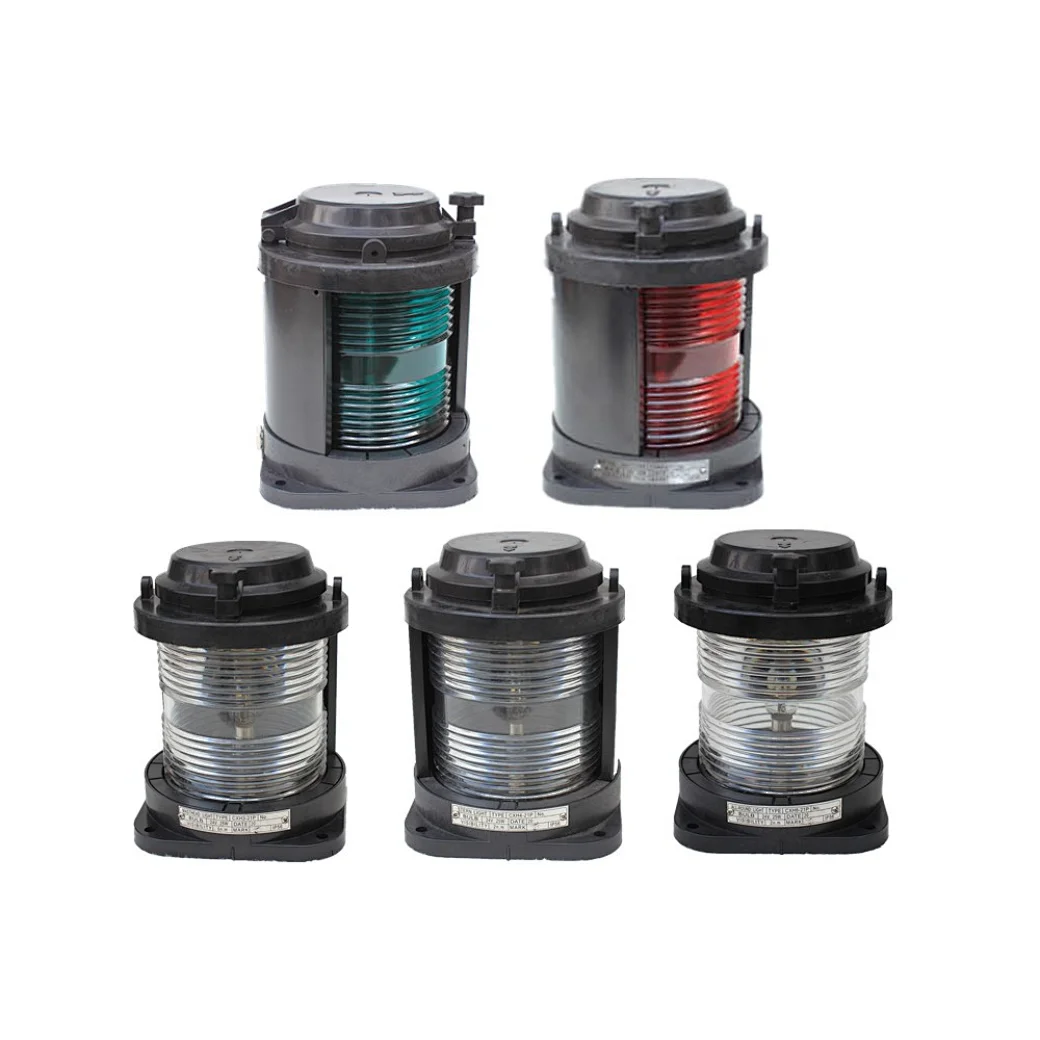

Name | Model | Visibility | Level arc | Color |
Starboard light | CXH1-21P | 2n.m | 112.5° | Green |
Port light | CXH2-21P | 2n.m | 112.5° | Red |
Masthead light | CXH3-21P | 5n.m | 225° | White |
Stern light | CXH4-21P | 2n.m | 135° | White/Yellow |
All-round light | CXH6-21P | 2n.m | 360° | Red/Green/White |
