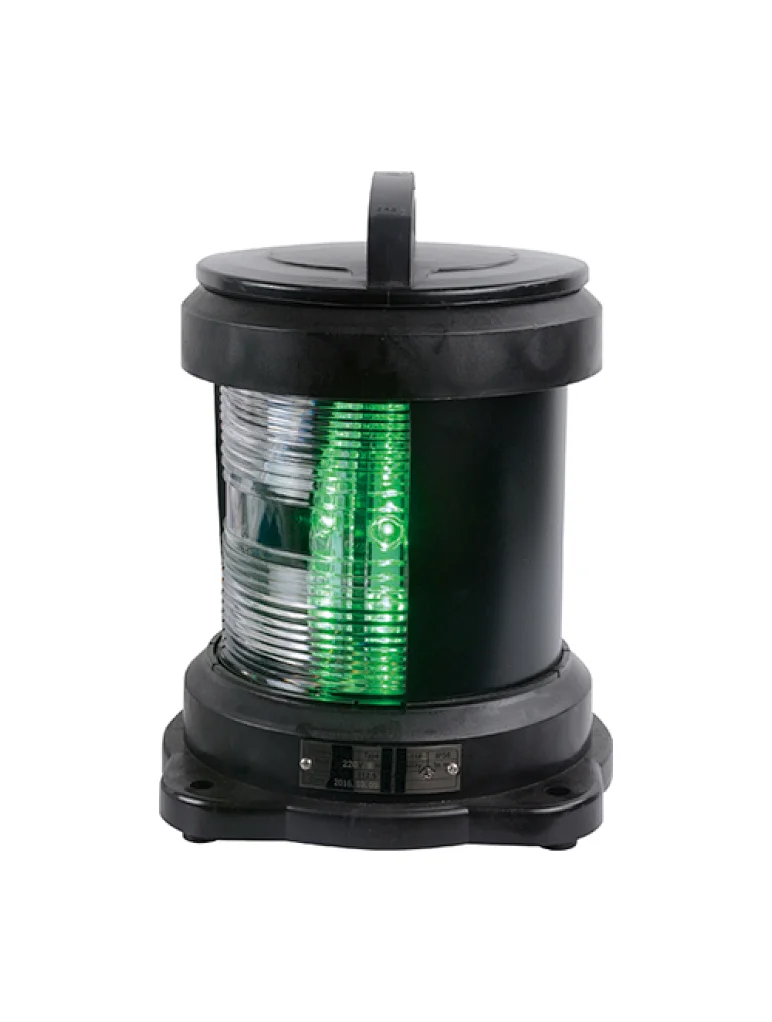

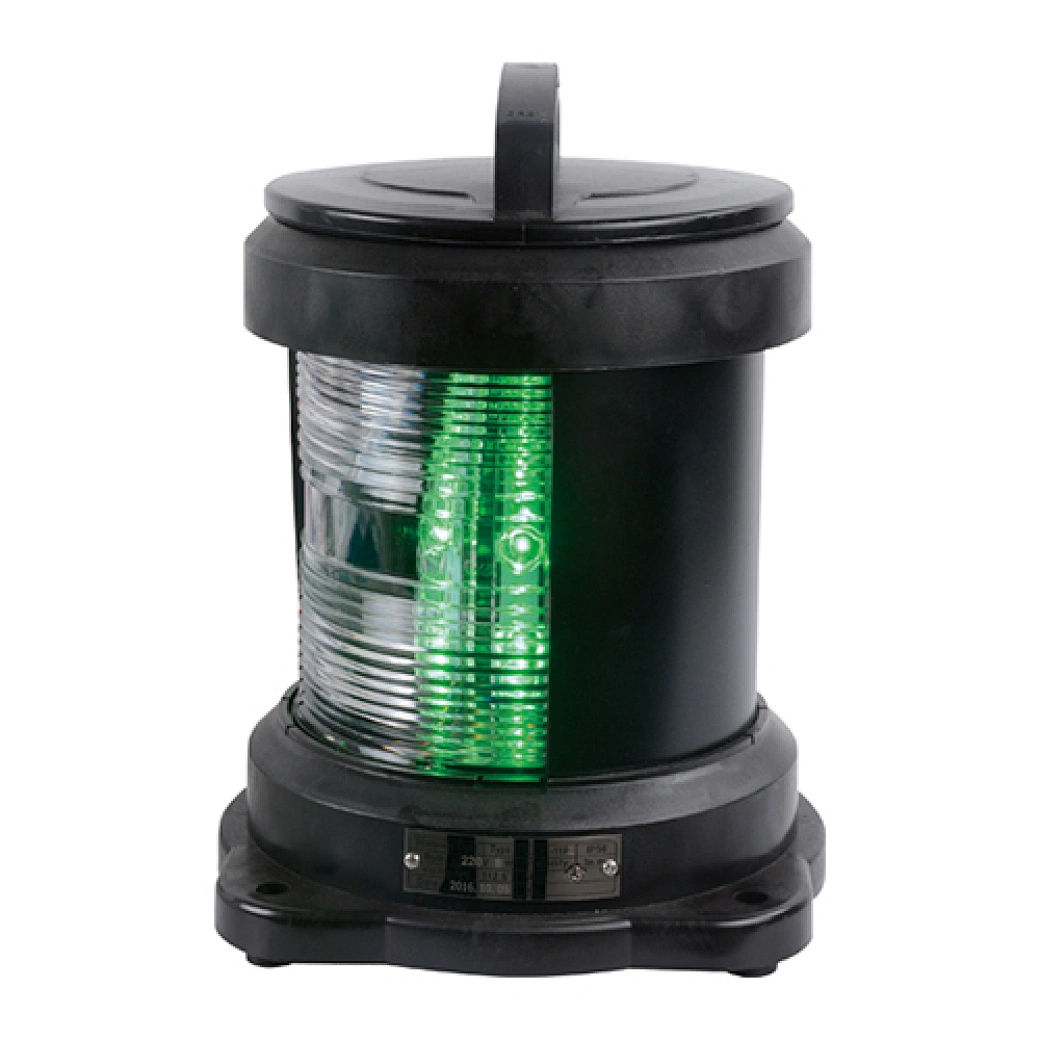

Marine Single-Deck Navigation Signal Light LED DC24V AC100-240V 1x8W - CXH-11PL
Application: For Ships More Than 50 Meters As The Signal Lights
Patent: ZL 201721558792.X
Standard: GB/T 3028,MSC 253(8)
Imeperature: -30℃ to 55℃
Material: Shell: PA+GF; Lampshade: PC; Lends Hood: Stainless Steel
Protection Class: IP56
Voltage: AC100-240V, 50/60HZ, DC24V
Lamp Holder: LED
Cable Diameter: Φ10-Φ12
CXH-11PL Series LED Type Marine Single-Deck Navigation Signal Light
All lights comply with the requirements of"Convention on the International Regulations for Preventing Collisions at Sea, 1972"of IMCO (Inter-governmental Maritime Consultative Organization). Available with a polycarbonate lens and polycarbonate case or a glass lens and a metal case. Both types meet the regulations for A-2 Class vessels.
Products characteristic
1.The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2.The signal lights have the whole seal structure, it is waterproof under the bad environment.
3.The signal lights uses exclusive LED light source which accords with ship rules and regulations, More energy effi cient, longer working life.
4.The signal lights can work normally under the temperature -30℃ ~55℃ .
Voltage | AC100-240V DC24V 50/60Hz |
Power | 8W LED |
Protection class | IP56 |
Cable outside diameter | Φ10-Φ12 |
Name | Model | Visibility | Level arc | Color |
Starboard light | CXH1-11PL | 3n.m | 112.5° | Green |
Port light | CXH2-11PL | 3n.m | 112.5° | Red |
Masthead light | CXH3-11PL | 6n.m | 225° | White |
Stern light | CXH4-11PL | 3n.m | 135° | White/Yellow |
All-round light | CXH6-11PL | 3n.m | 360° | Red/Green/White |
