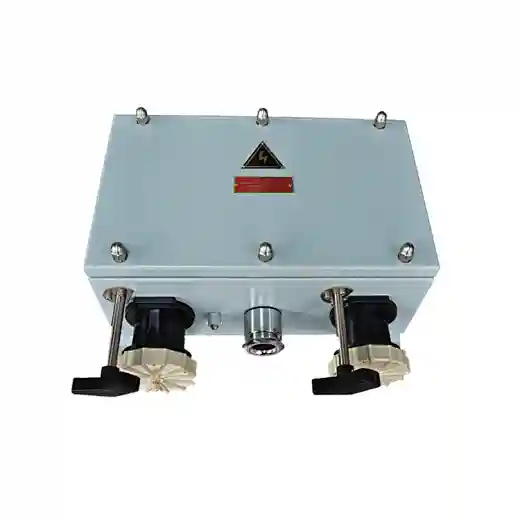

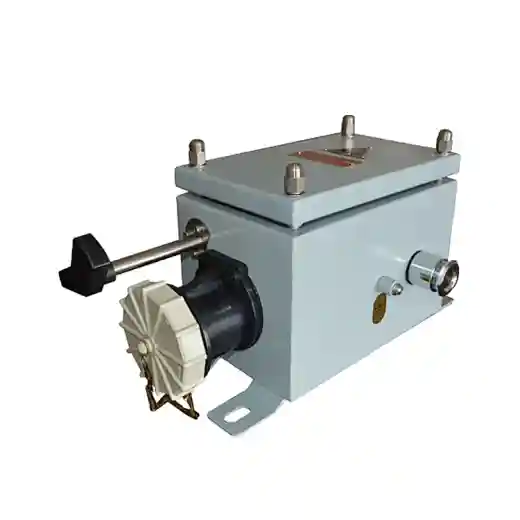

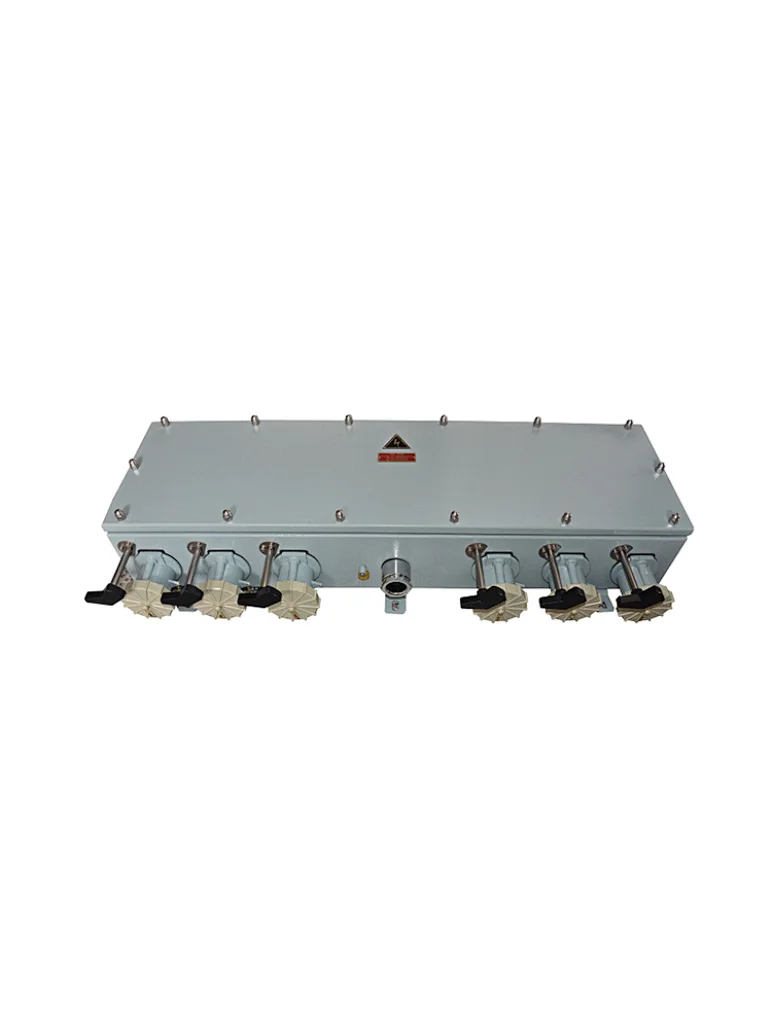

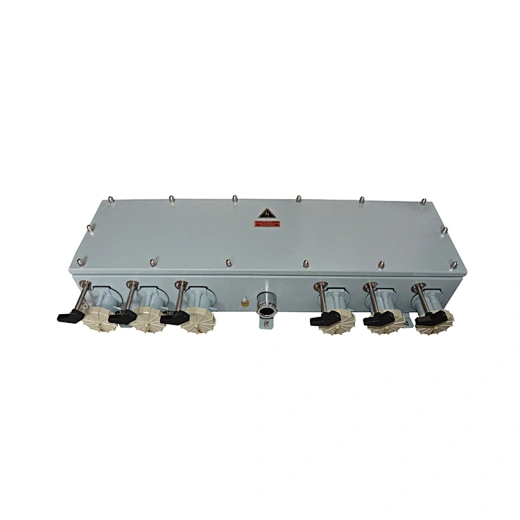

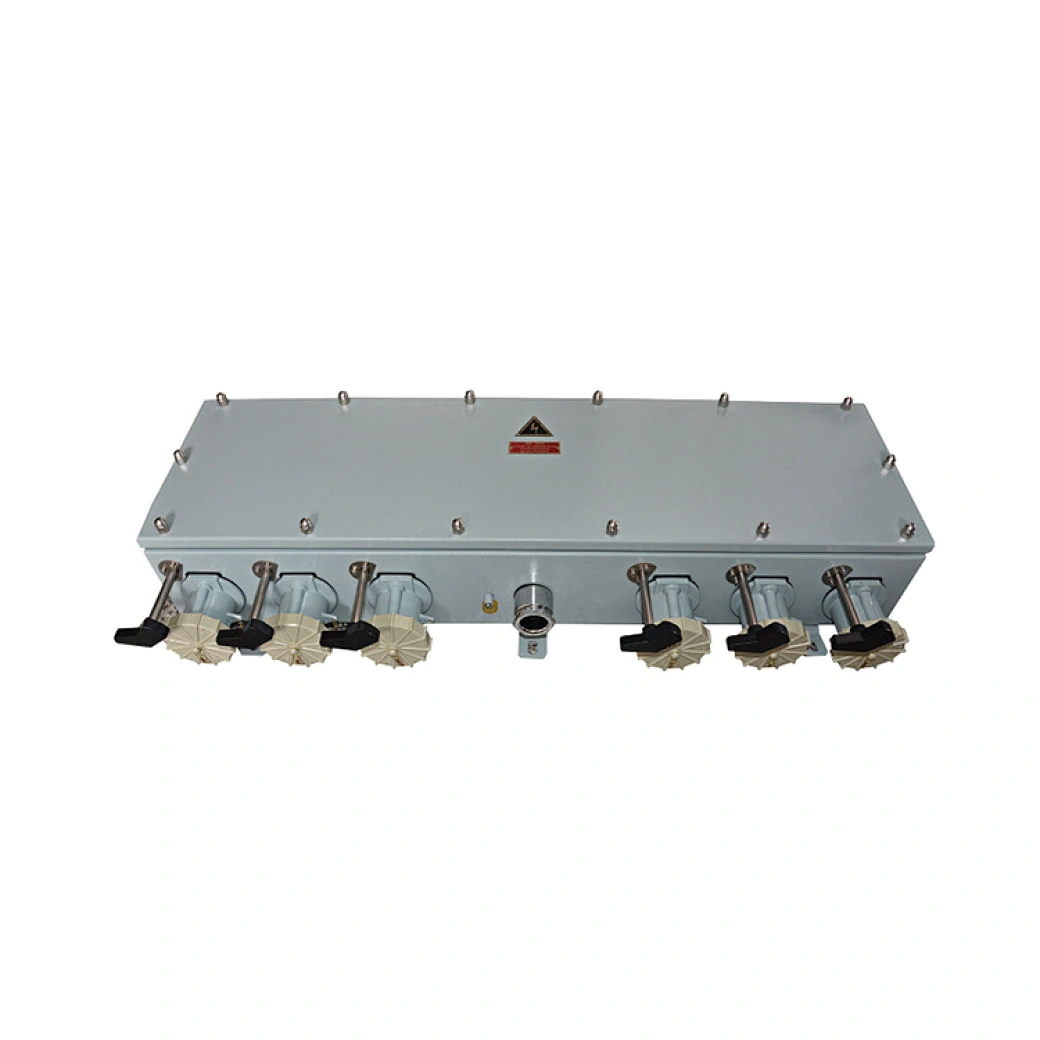

Stainless Steel Reefer Container Socket Box
CZXB3-2
Protection Class: IP67
Material: Box body - Stainless Steel / Socket - Brass or Nylon
Voltage: AC380/440V 50/60Hz 3P+E
Current: 32A
Material: Box body - Stainless Steel / Socket - Brass or Nylon
Voltage: AC380/440V 50/60Hz 3P+E
Current: 32A
Quantity
- Appearance design is reasonable, compact and applicable;
- The combination form is flexible, can provide 1 to 10 joint assembly structure;
- Simple drawer and socket technology, without the need to disconner other socket power supply, quick replacement of internal circuit breakers;
- Stainless steel box and cover, brass or nylon connectors
- Body protection class IP67, the socket cover can prevent water entering the socket box while be accidentally opened;
- Plug from bottom to top into th socket,easy to operate, the front of the housing positioning to ensure easy plug in the dark;
- With mechanical interlock device, plug can only be inserted or puller out in the state of power off;
- The circuit breaker has good performance and high breaking capability (satndard is 10kA, special requirements up to 30kA).
Model | CZXB3-2/15-2X1 CZXB3-2/15-1X1 | CZXB3-2/15-2X2 CZXB3-2/15-1X2 | CZXB3-2/15-2X3 CZXB3-2/15-1X3 | CZXB3-2/15-2X4 CZXB3-2/15-1X4 | CZXB3-2/15-2X5 CZXB3-2/15-1X5 | CZXB3-2/15-2X6 CZXB3-2/15-1X6 |
Socket | One socket | Two sockets | Three sockets | Four sockets | Five sockets | Six sockets |
Material | Box: Stainless steel Socket: Nylon / Brass | |||||
Voltage | 380V / 440V 50 Hz / 60Hz | |||||
Current | 32A | |||||
Pole | 3P+E | |||||
Length | 250 | 430 | 620 | 800 | 940 | 1080 |
Width | 300 | 300 | 300 | 300 | 300 | 300 |
Height | 204 | 204 | 204 | 204 | 204 | 204 |
IP Grade | IP67 | |||||
