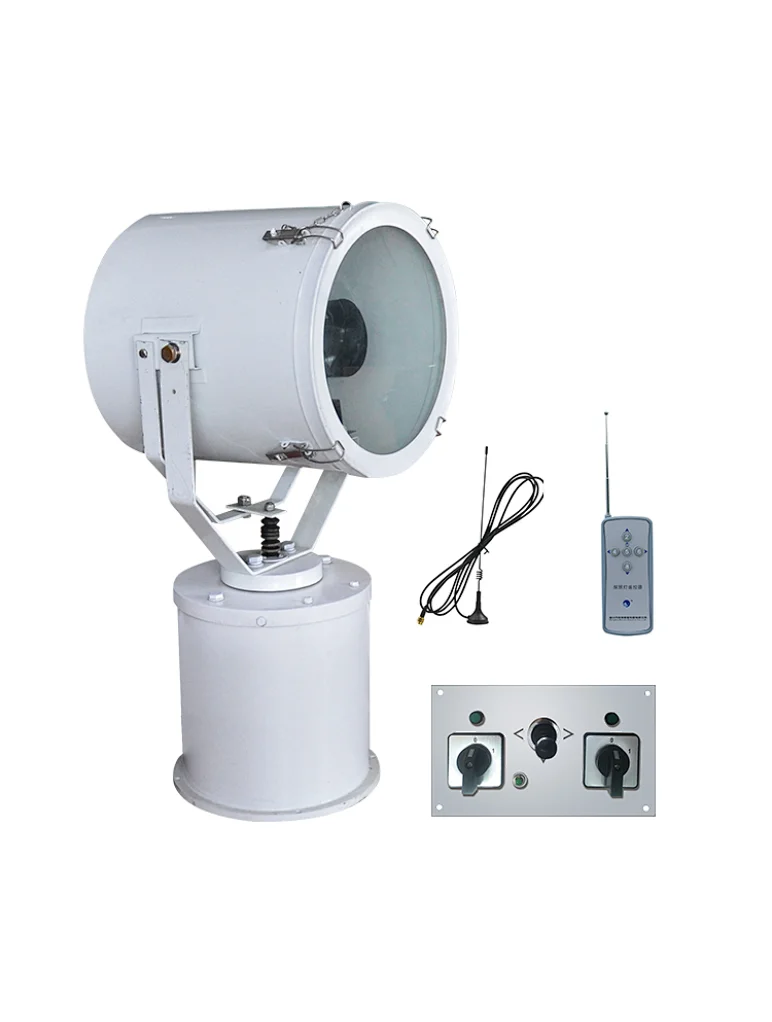

TG26-A/TG27-A/TG28-A S.S. Remote Control Halogen 220V 300-2000W Marine Searchlight
The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when across the complex water area, such as narrow channel and the inland river riverway etc.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619R0M.
Products characteristic
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality stainlesssteel 304 base , adopt import electrical machine.
2. The lamp can adjust up 20° , down 50° by operating box, adjust far distance of 350° horizontally, equipped operating box.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .
5. Products with wireless remote control, can control the operation of the wireless 100 m lamp assembly, the leading domestic Line level, and through product design patents.
6.Patent No.:ZL 201420804513.3.
Model | TG26-A | TG27-A | |
Voltage | 220V/50Hz / 220V/60Hz | ||
Power | 300W | 500W | 1000W |
Luminous flux | 6900LM | 12500LM | 23000LM |
Lamp holder | GY9.5 | GX9.5 | |
Light source | Tungsten halogen lamp | ||
Material | Stainless steel | ||
Protection class | IP56 | ||
Cable outside Diameter | Φ10-Φ12 | ||
Annex | Remote control |

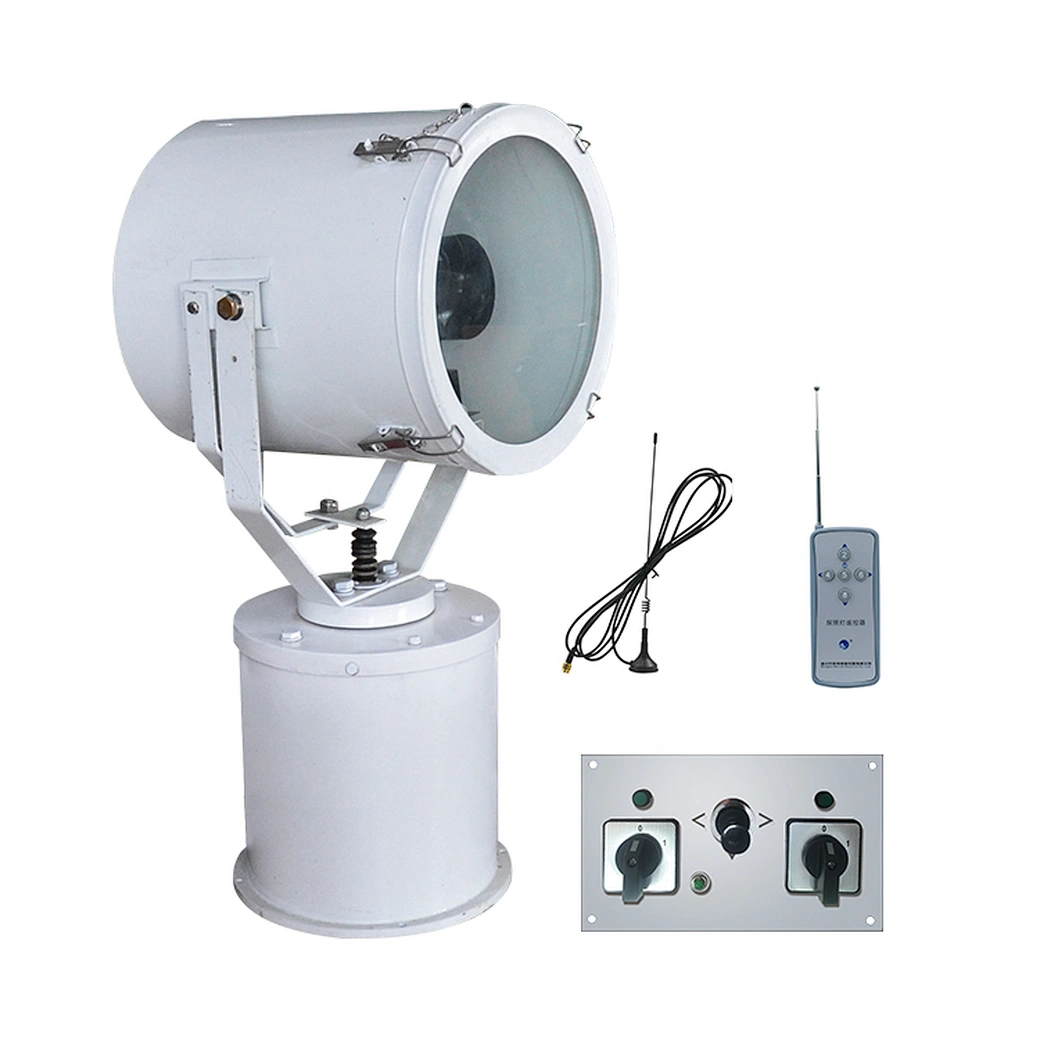

TG28-A
The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when across the complex water area, such as narrow channel and the inland river riverway etc.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619R0M.
Products characteristic
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality stainlesssteel 304 base , adopt import electrical machine.
2. The lamp can adjust up 20° , down 50° by operating box, adjust far distance of 350° horizontally, equipped operating box.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .
5. Products with wireless remote control, can control the operation of the wireless 100 m lamp assembly, the leading domestic Line level, and through product design patents.
6.Patent No.:ZL 201420804513.3.
Model | TG28-A |
Voltage | 220V/50Hz / 220V/60Hz |
Power | 2000W |
Luminous flux | 53000LM |
Lamp holder | GY16 |
Light source | Tungsten halogen lamp |
Material | Stainless steel |
Protection class | IP56 |
Cable outside Diameter | Φ14-Φ16 |
Annex | Remote control |
