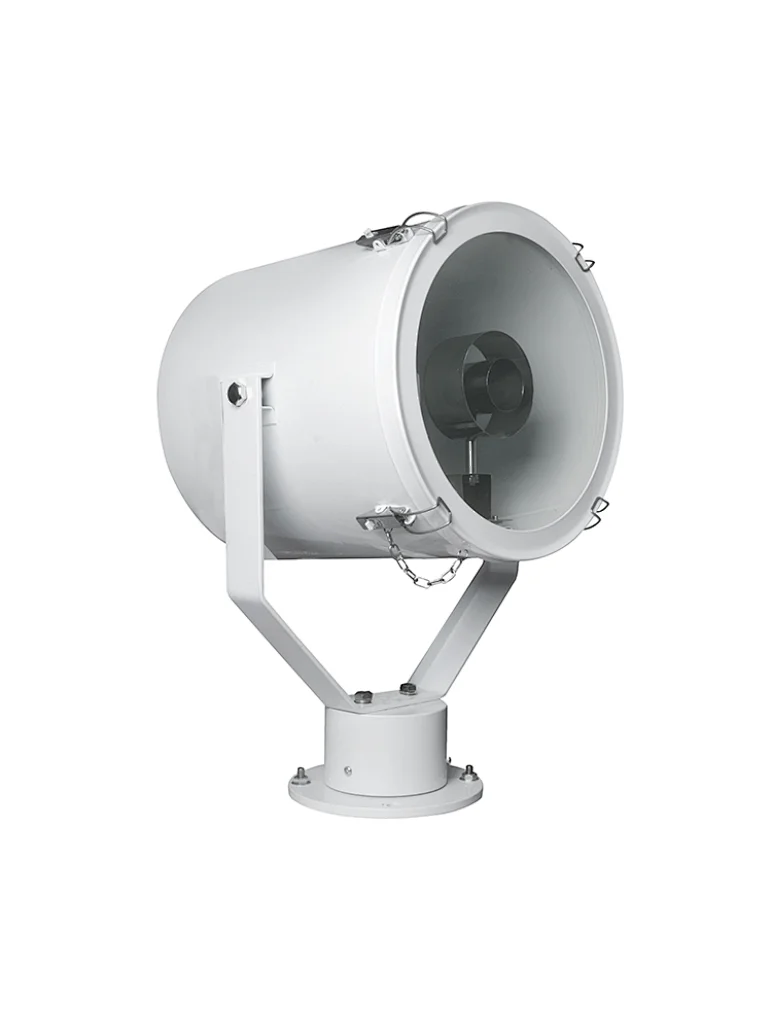

TG26-B/TG27-B/TG28-B IMPA 370481 370482 S.S. Halogen 220V 300-2000W Marine Searchlight
TG26-B TG27-B TG28-B
Quantity
Contact Now
Add To Cart

The scope of application

1. The lamp body is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lamps-hade, high quality brass base.

2. The lamp can adjust up 20° , down 50° , 350° horizontally.

3. Parallel light-beam, far illumination distance, concentrated light.

4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .

Model

TG26-B

TG27-B

IMPA Code

370481-370482

Voltage

220V/50Hz / 220V/60Hz

Power

300W

500W

1000W

Luminous flux

6900LM

12500LM

23000LM

Lamp holder

GY9.5

GX9.5

Light source

Tungsten halogen lamp

Material

Stainless steel

Protection class

IP56

Cable outside Diameter

Φ10-Φ12

TG28-B

The scope of application

1. The lamp body is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lamps-hade, high quality brass base.

2. The lamp can adjust up 20° , down 50° , 350° horizontally.

3. Parallel light-beam, far illumination distance, concentrated light.

4. Conform to《GRADE ENTRY NORMS FOR STEEL SHIPS 》 .

Model

TG28-B

IMPA Code

370481-370482

Voltage

220V/50Hz / 220V/60Hz

Power

2000W

Luminous flux

53000LM

Lamp holder

GY16

Light source

Tungsten halogen lamp

Material

Stainless steel

Protection class

IP56

Cable outside Diameter

Φ10-Φ12
