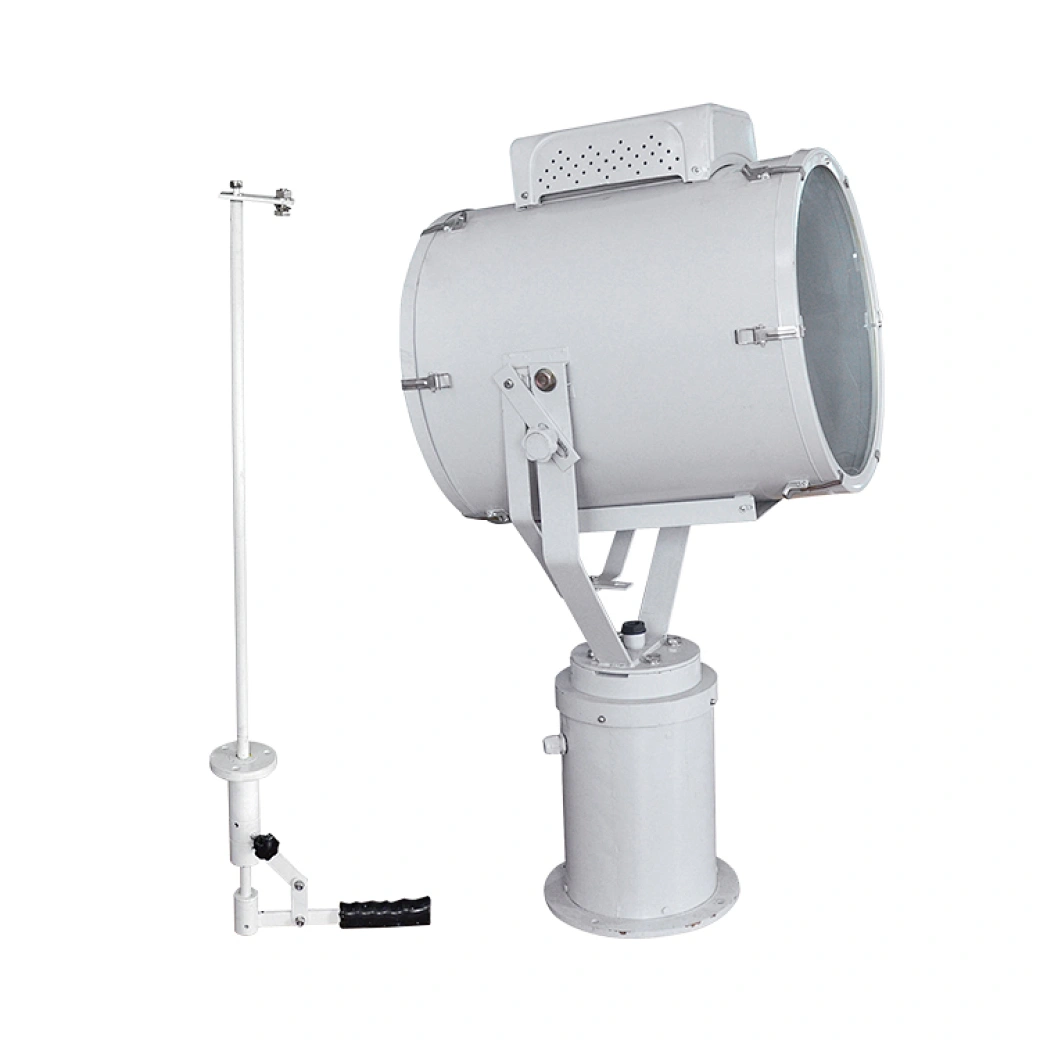

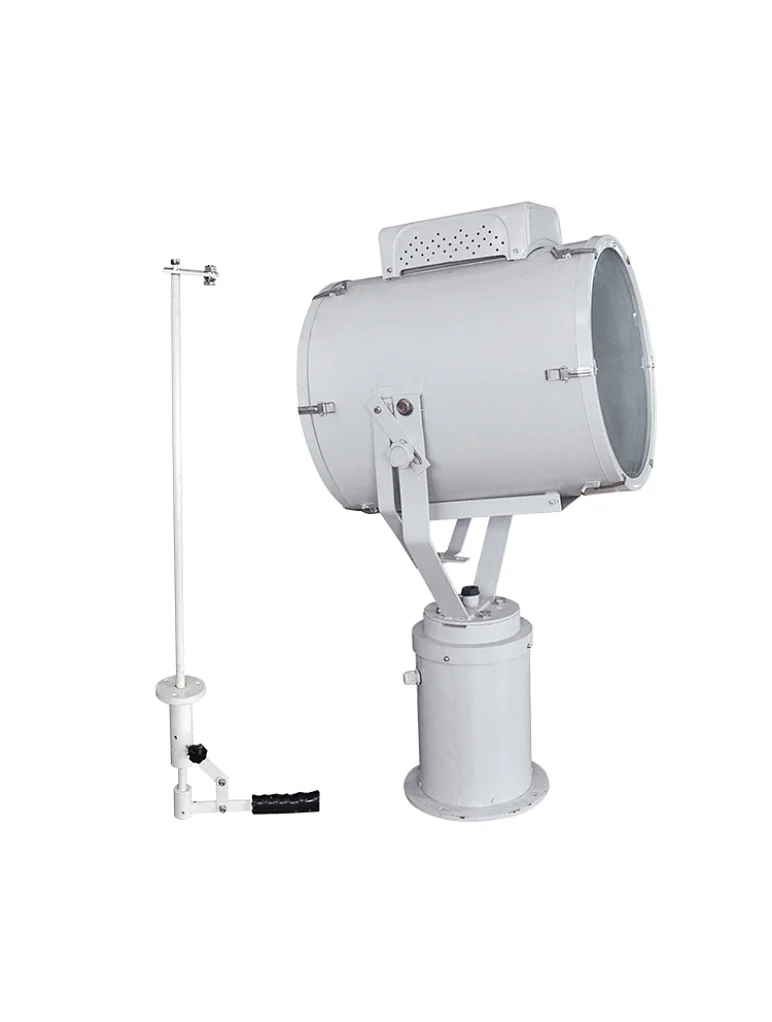

TZ1 Steel Xenon 100-230V 1000W Marine Searchlight With Lifter
The scope of application
Applied to remote illumination of ship night navigation, lifesaving, warning etc, and aim searching.
Products characteristic
1. Equipped the sphere toughened glass refl ector and the device of focus adjustmentwhich can adjust the focus up and down, front and black neatly, and has the functionssuch as high luminlus intensity, far illumination distance.
2. TZ1 Has steel shell, ball plate mounted on base, also equipped with lifting gear whichcan control the light body by hand to rotate for 350° horizontally and pitching 30°, Equipped the electical box when supply DC110V pleaseremark clearwhen order.
3. TZ1-A Has stainless steel shell, a micro motor is mounted on base, and can operatethe light body to rotate for 350° horizontally and pitching 30° by controller.
4. Patent No.:ZL 201420804513.3.
Model | TZ1 | TZ1-A |
Voltage | 110V / 220V | |
Power | 1000W | |
Luminous flux | 60000LM | |
Lamp holder | Special | |
Light source | Sphericity mercury xenon lamp | |
Protection class | IP55 | |
Cable outside Diameter | Φ10-Φ12 | |
Material | Steel | Stainless steel |
Annex | Control lever | Remote control |
