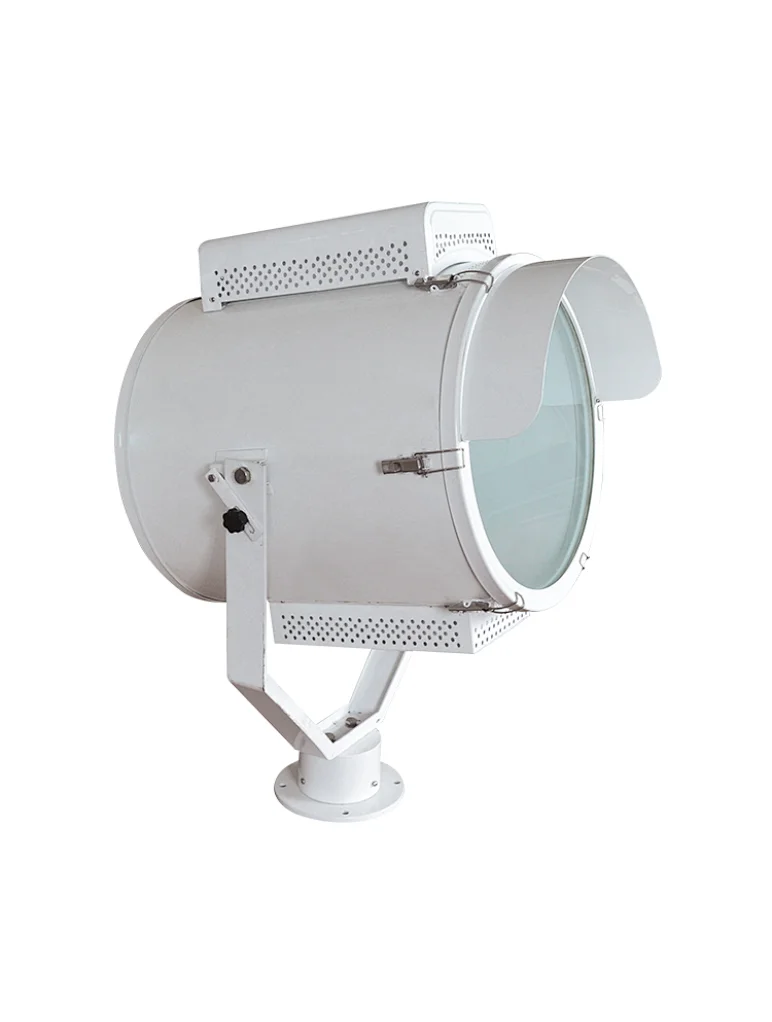

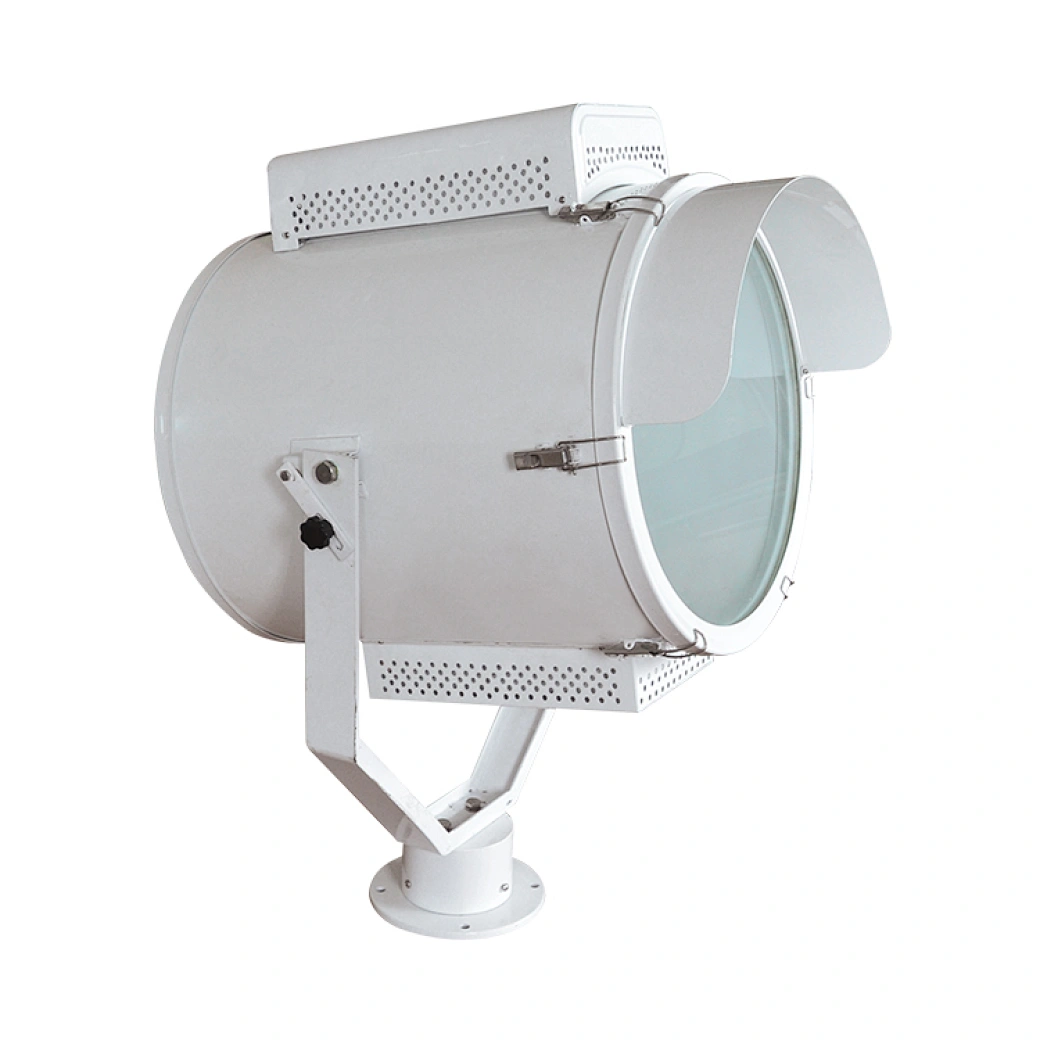

TZ2/TZ3/TZ4 S.S. Xenon Halogen 100-230V 2000-3000W Marine Searchlight
The scope of application
Applied to remote illumination of ship night navigation, lifesaving, warning etc, and aim searching.
Products characteristic
1. Equipped the sphere toughened glass reflector and the device of focus adjustment which can adjust the focus up and down, front and black neatly, and has the functions such as high luminlus intensity, far illumination distance.
2. TZ3 Has stainless steel shell, ball plate mounted on base, also equipped with lifting gear which can control the light body by hand to rotate for 350° horizontally and pitching 30°, Equipped the electical box when supply DC110V please remark clearwhen order.
3. TZ3-A Has stainless steel shell, a micro motor is mounted on base, and can operate the light body to rotate for 350° horizontally and pitching 30° by controller,with the remote control focus function,with two type (fast/slow) rotating speed can be choose, which is convenient for irradiating target accurately.
4. With two independent exhaust system inside, effectively for reducing the temperature of the lamp.
5. Patent No.:ZL 2014 2 0804541.5,ZL 2015 2 0410378.9 ZL 2015 2 0410358.1,ZL 2015 2 0410386.3.
TZ2 TZ2-A
Model | TZ2 | TZ2-A |
Voltage | 110V / 220V | |
Power | 2000W | |
Luminous flux | 120000LM | |
Lamp holder | Special | |
Light source | Sphericity mercury xenon lamp | |
Protection class | IP55 | |
Cable outside Diameter | Φ10-Φ12 | |
Material | Steel | Stainless steel |
Annex | Control lever | Remote controller |
TZ3 TZ3-A
Model | TZ3 | TZ3-A |
Voltage | 110V / 220V | |
Power | 3000W | |
Luminous flux | 52800LM | |
Lamp holder | G38 | |
Light source | Incandescent focus lamp | |
Material | Stainless steel | |
Protection class | IP55 | |
Cable outside Diameter | Φ14-Φ16 | |
Annex | Control lever | Remote controller |
TZ4 TZ4-A
Model | TZ4 | TZ4-A |
Voltage | 110V / 220V | |
Power | 3000W | |
Luminous flux | 180000LM | |
Lamp holder | Special | |
Light source | Sphericity mercury xenon lamp | |
Protection class | IP55 | |
Cable outside Diameter | Φ10-Φ12 | |
Material | Steel | Stainless steel |
Annex | Control lever | Remote controller |
