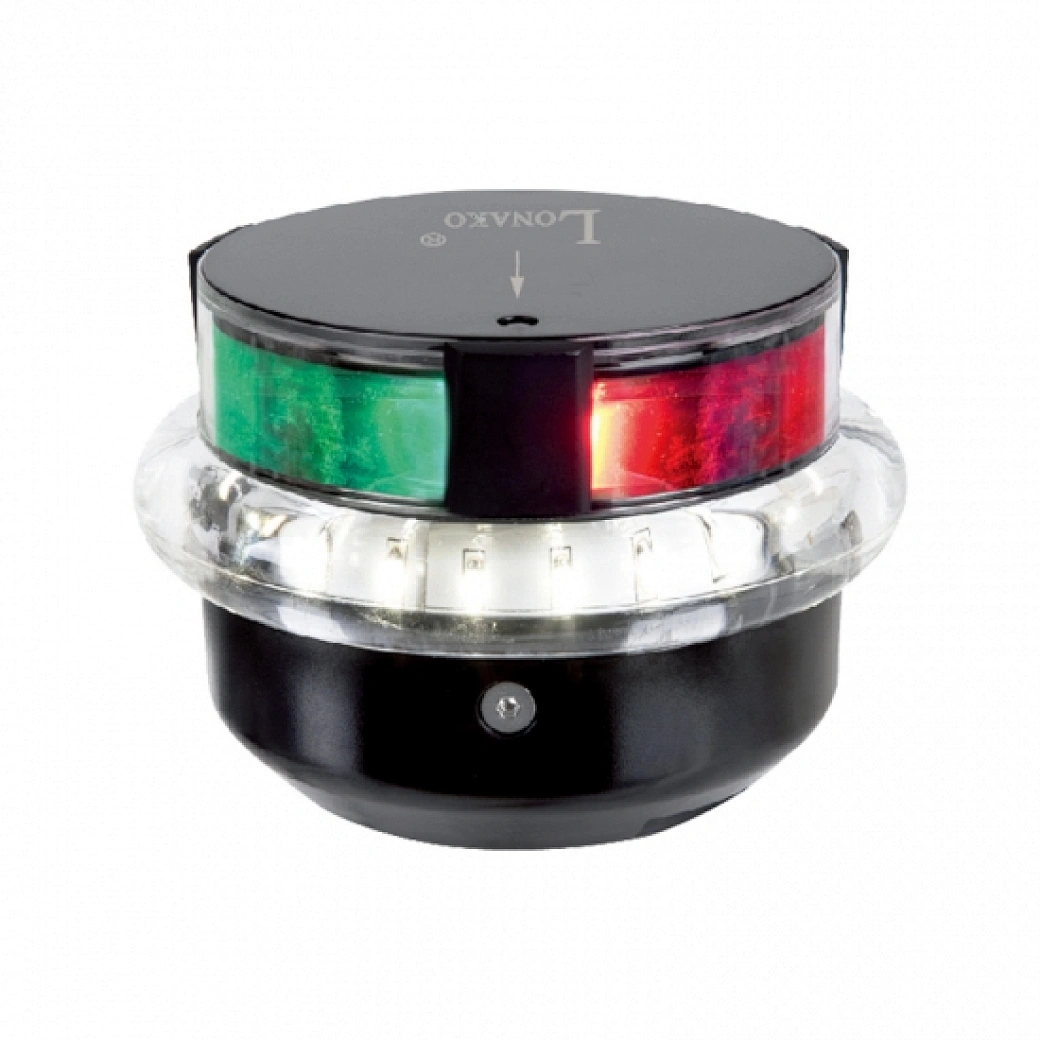

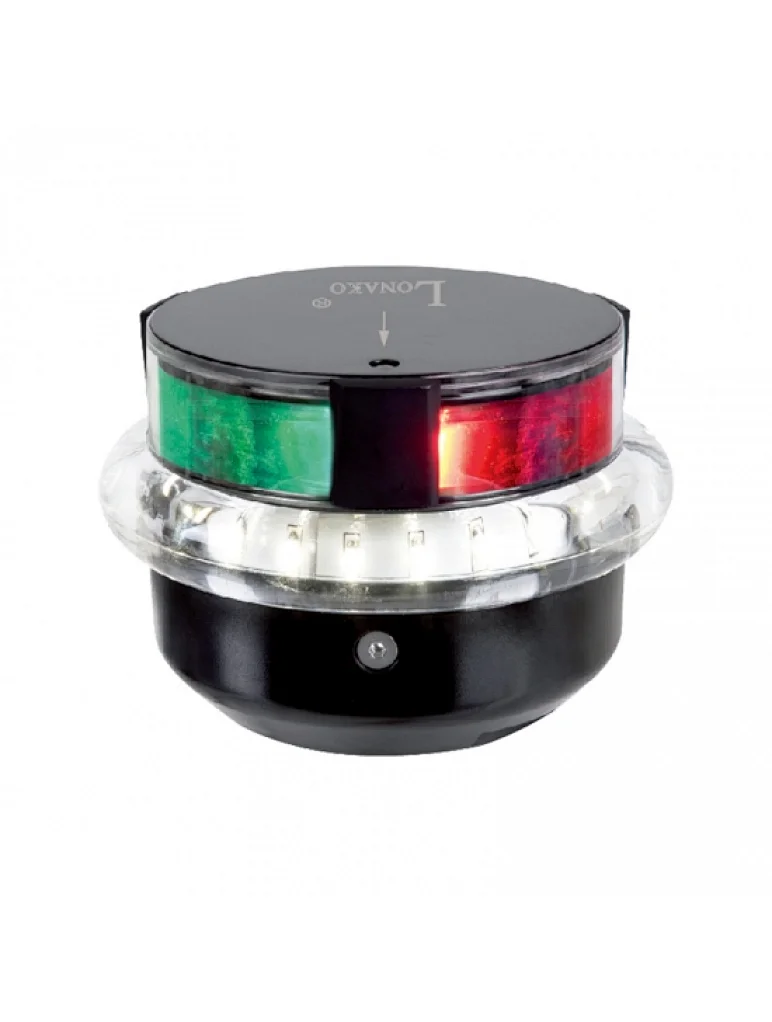

Yacht Led Navigation Signal Anchor Light BZYX61-RGW
BZYX61-RGW
This navigation light is combined with a Tri-color navigation light and an All-round white light/anchor light. It was supplied by DC 12 / 24 V input wire and both functions could control through the wire separately.
Quantity
Contact Now
Add To Cart


Once the Tri-color navigation light turned on it will showing unbroken light signal in horizontal at Left - 112.5° RED / Right - 112.5° GREEN / Aft -135° WHITE; And once the All-round white light turned on it will showing unbroken white light in 360° horizontal. The visual distance of all those light signals are no less than 2 nautical miles. The product adopts new LED light source and with plug-in mounting base design. It has the advantages such as modern design super energy saving and waterproof. It suitable for all types of vessels with a length < 20 meters.
Type
BZYX61-RGW
Light Source
High Efficient LED
Beam Angle
Tri-Color Light : Left-- 112.5°, Right-- 112.5°, Aft--135°;
&All-Round White Light : 360°
Rated Voltage
DC 12/24v
Working Consumption
<2.0 Watt
Visual Distance
2 Nautical Miles (≥5.6cd)
Suitable vessels
Length< 20 Meters
Dimension
Φ115*82mm
Weight
335±5 G (Include Input Wire)
Wire Length
500mm Extended Wire Included
waterproof Level
IP67
Activation
Controlled By Boat Panel Through Input Wire
Performance
Fire-Resistant, Oil-Resistant, Mycete-Proof, Corrosion-Proof, Water-Proof
Environment Performance
Meet Rohs And Asbestos-Free Requirement
