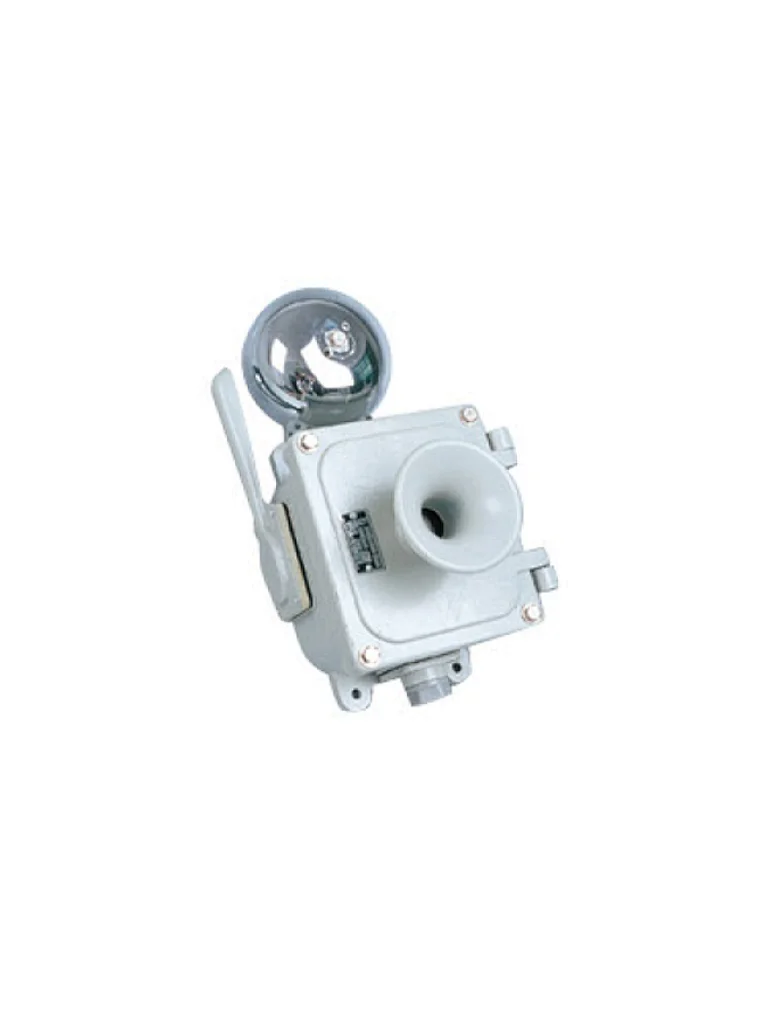

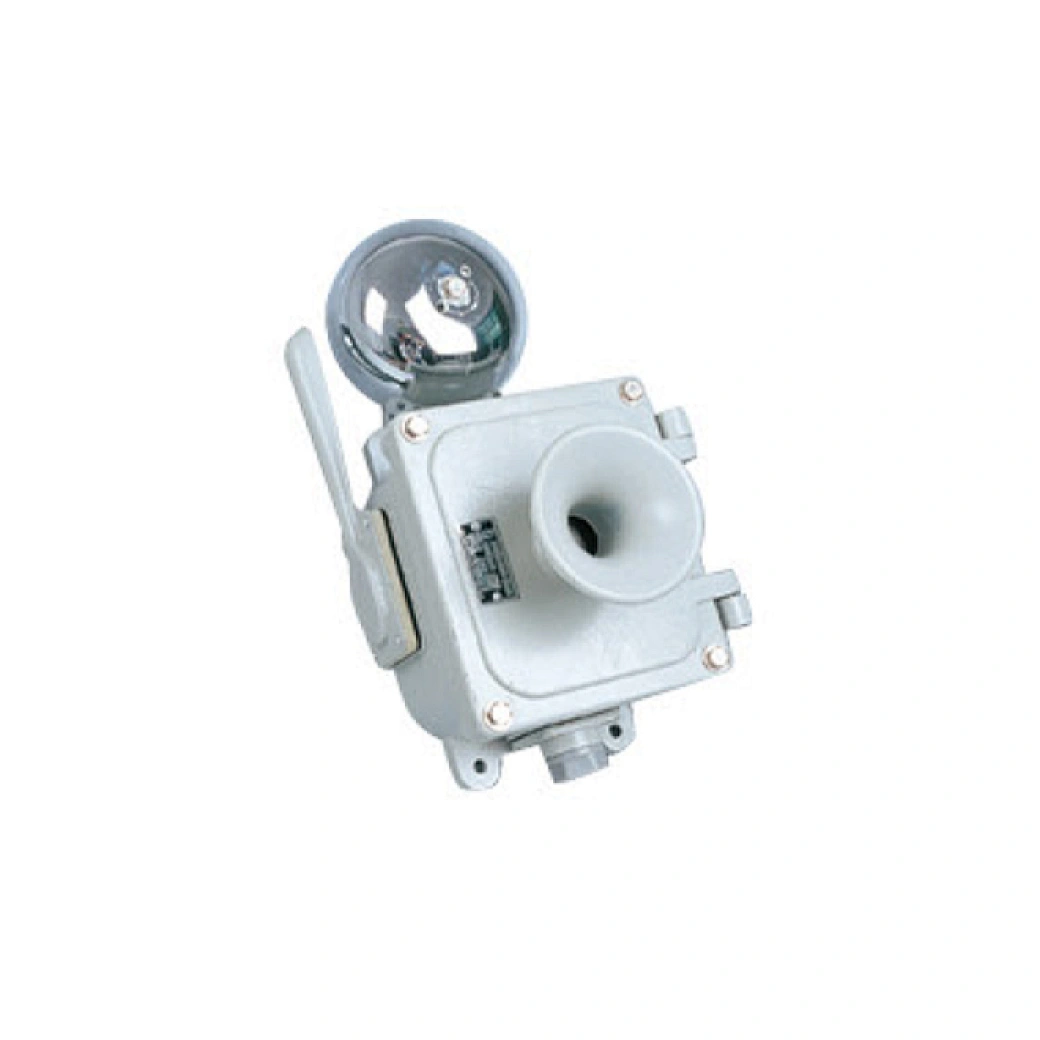

YLM Marine Bell Buzz 24/110/220V 82dB 92dB
YLM
Sound signals is an important and simple communication and alarm tool on the ship, which can send out special signals in time to indicate the occurrence of some abnormal phenomenon. lt is also a supporting instrument for the ship's telephone, communication equipment, teltgraph and other electrical equipment.
Protection Class: IP56
Cable: Φ14-Φ16
Operation Temperature: -25*C to +55°C
Remarks: When the power supply voltage is within the range of DC +15% and AC+6% to +10% of the rated value, it can work reliably and ite sound intensity is not less than the specified value.
Protection Class: IP56
Cable: Φ14-Φ16
Operation Temperature: -25*C to +55°C
Remarks: When the power supply voltage is within the range of DC +15% and AC+6% to +10% of the rated value, it can work reliably and ite sound intensity is not less than the specified value.
Quantity
Name | DC electric bell - Sounder | AC electric bell - Sounder | ||||
Model | YLM-24Z | YLM-110Z | YLM-220Z | YLM-24J | YLM-110J | YLM-220J |
Voltage | 24V | 110V | 220V | 24V | 110V | 220V |
Current | 0.2A | 0.1A | 0.06A | 0.3A | 0.1A | 0.05A |
Sound intensity | 92dB | 82dB | ||||
IP Grade | IP56 | |||||
Cable diameter | Φ14-Φ16 | |||||
